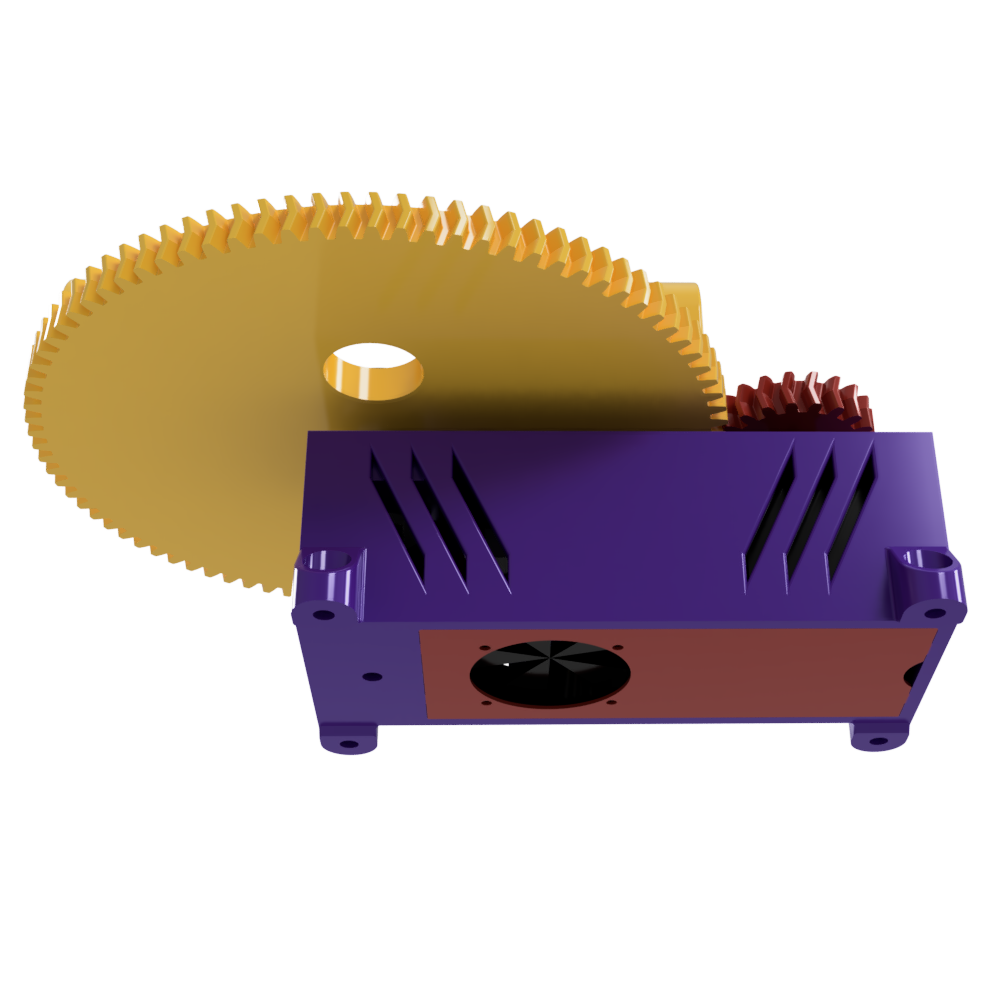

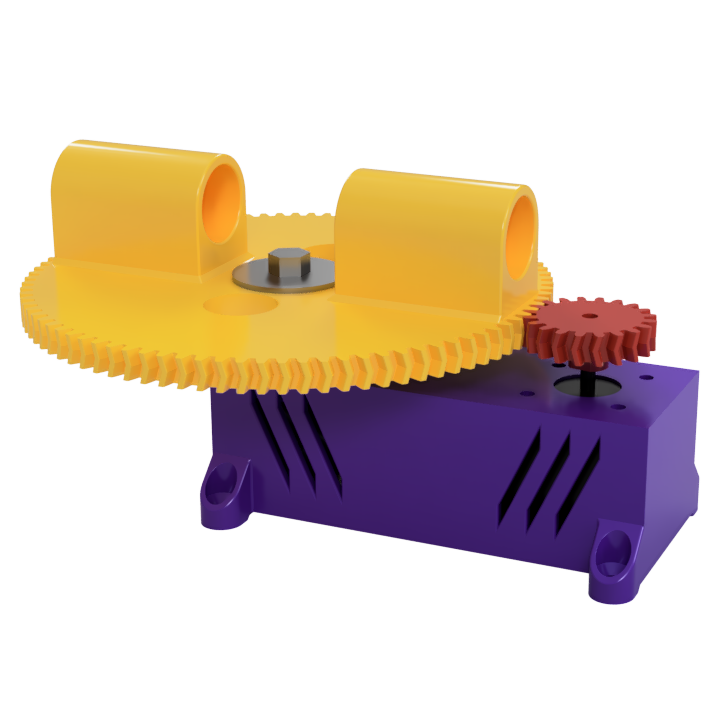

Orbital Camera Rig - STL File

Warning: This project is still in a very prototype stage.

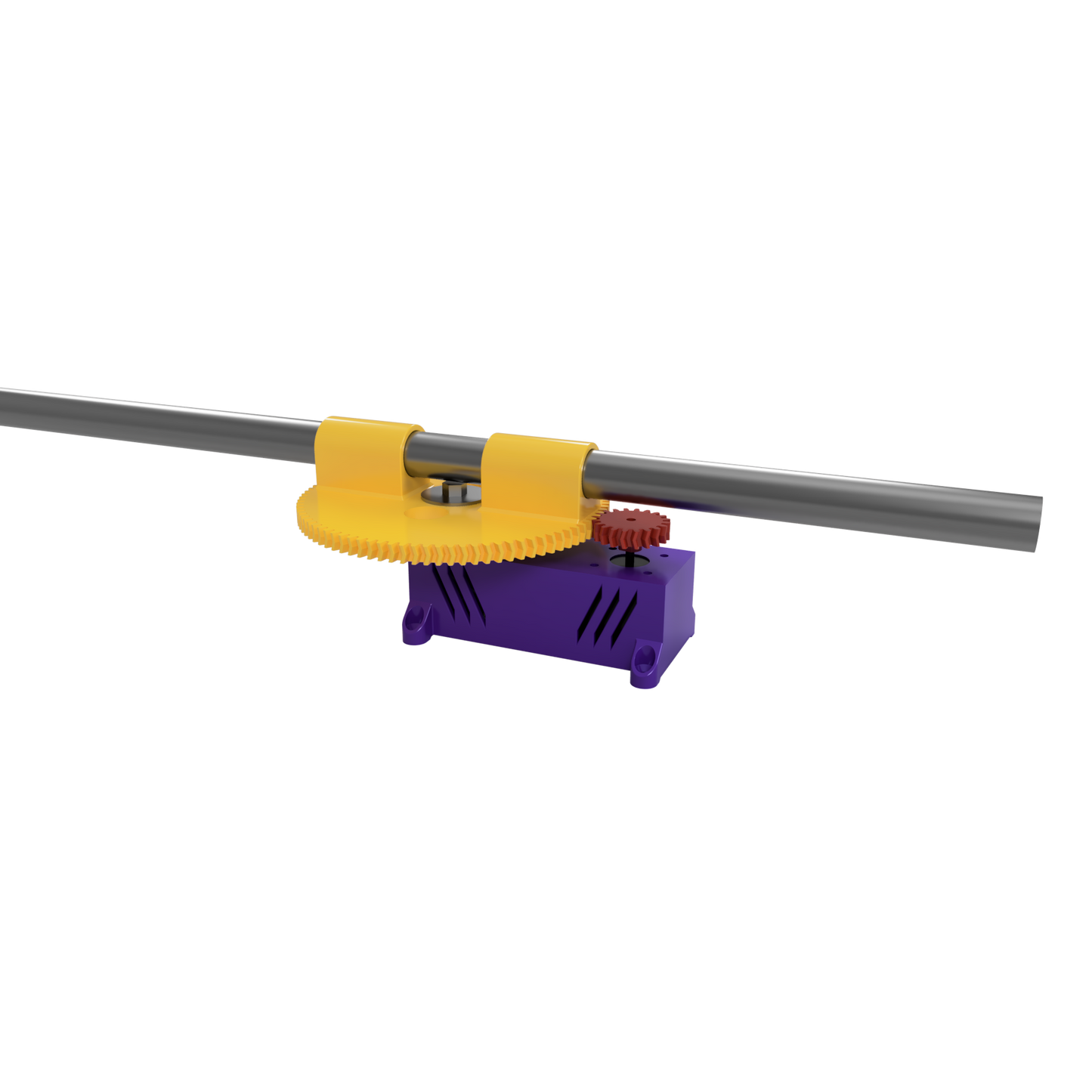

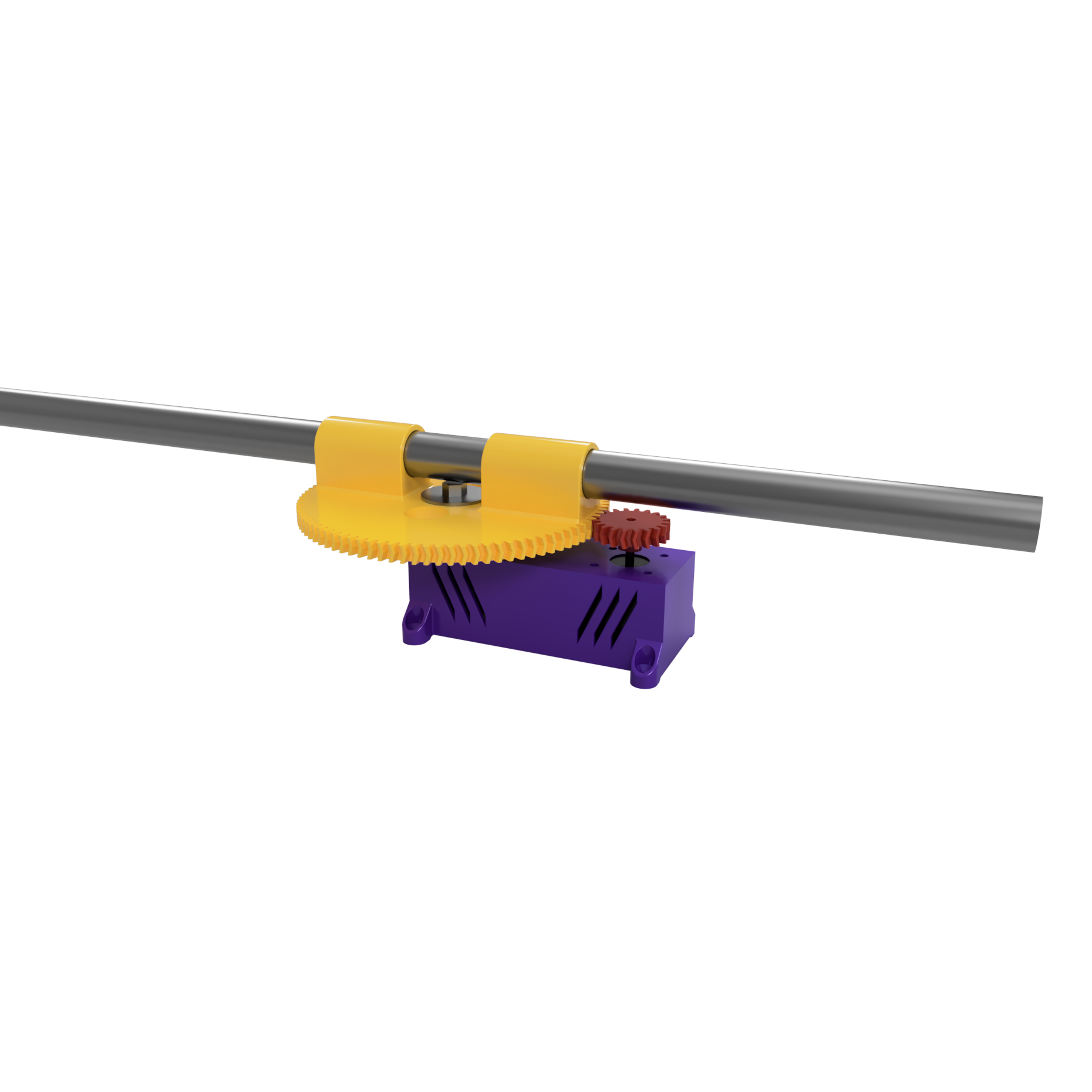

I wanted to level up my timelapses but a decent size Orbital Camera Rig was too expensive. I designed this rig to work with:

• Any length of 3/4" PVC or aluminum pipe, so long as it is counter weighted appropriately
• ESP32
• A4988 or TMC2208 (with modification to code)
• LM2596 Buck Converter
• Mounting in almost any orientation

You can find the code for this project on GitHub

If you need any modifications, please reach out!

STL Files:

• Case

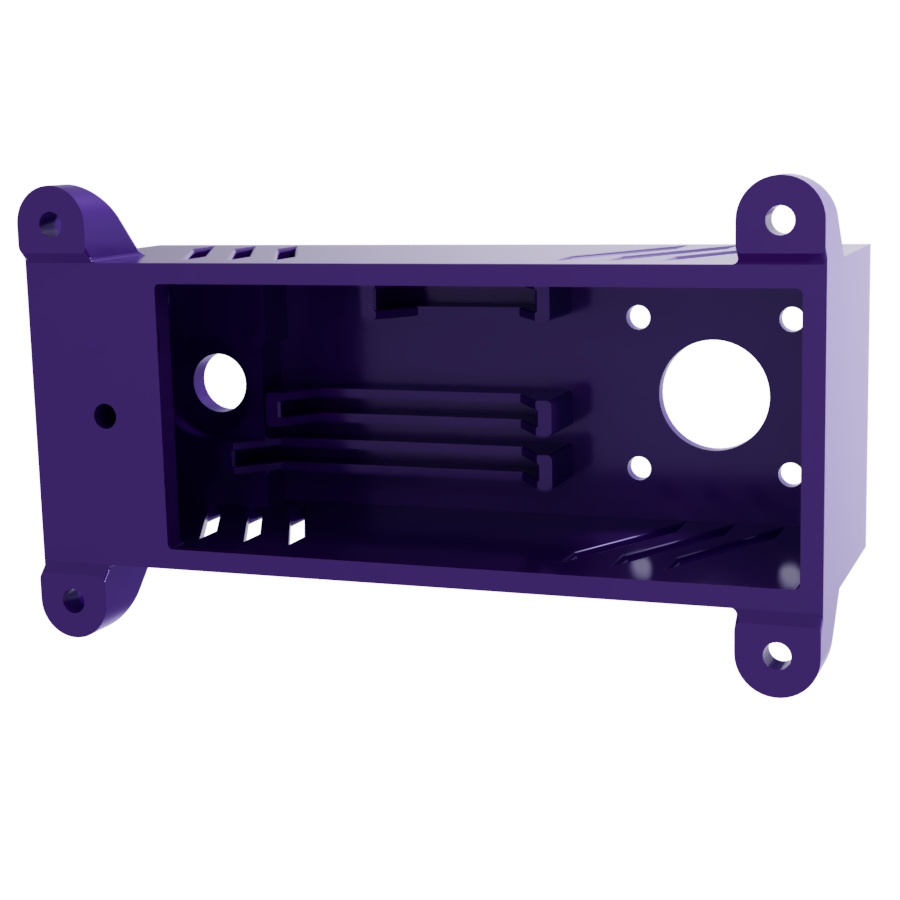

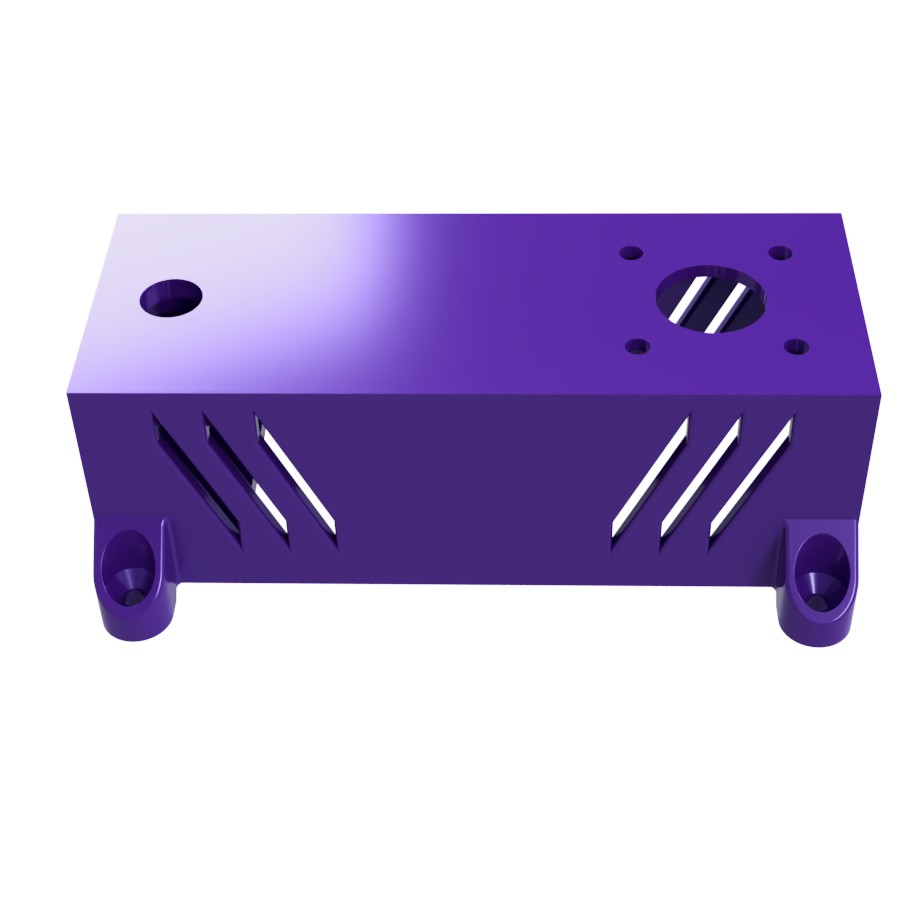

  • HolderCase.stl Main Body of Rig. Print with decent infill and wall count.

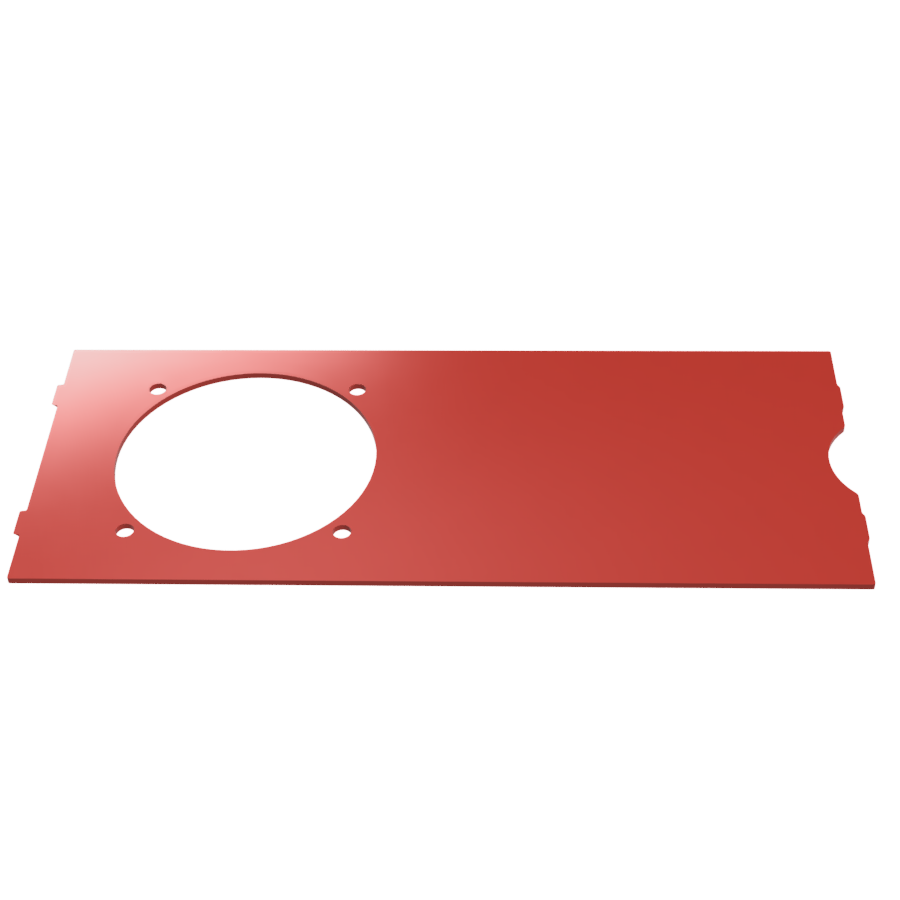

  • HolderLid.stl Lid for Case, I was not able to get to fit properly, poor design, has fan mount.
• Gears

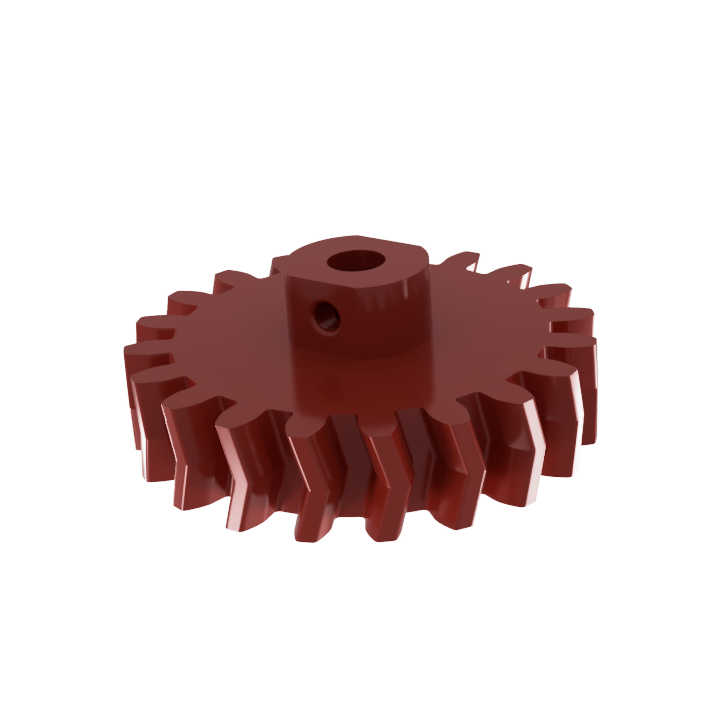

  • DriveGear.stl Gear to be mounted on Stepper Motor, has 2 holes for M3 screw to grip shaft.

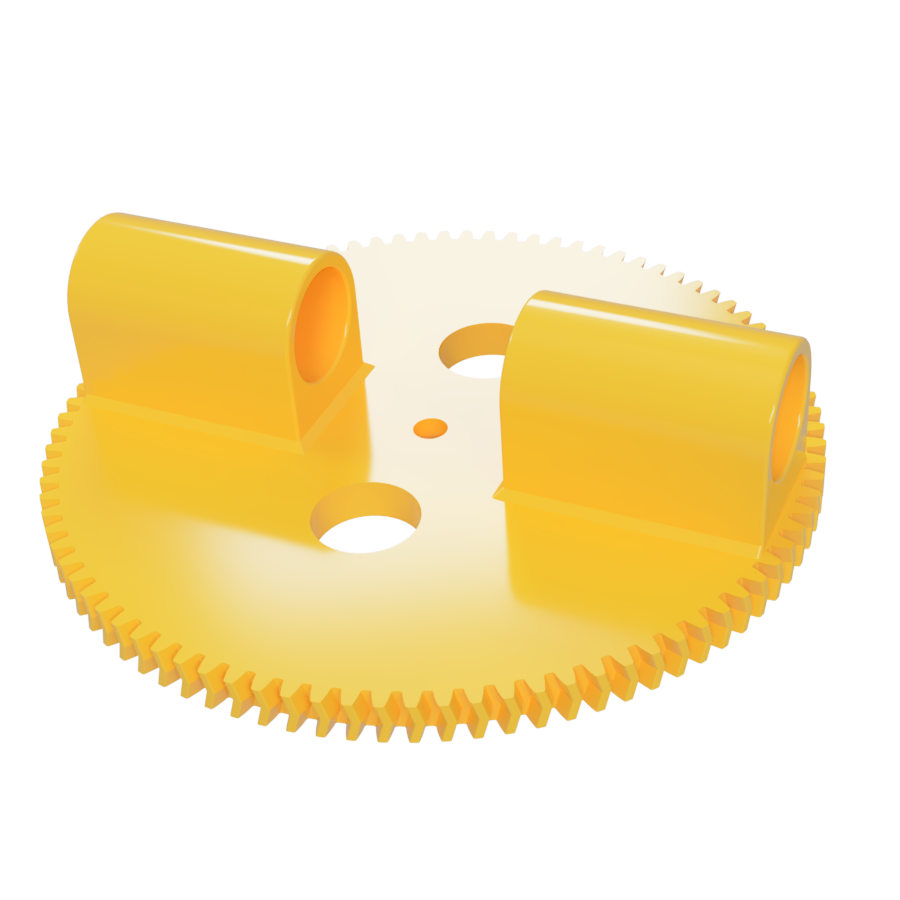

  • DrivenGear.stl Large driven gear, has slot for pvc pipe. This gear is structural and need to be printed with decent infill and wall count.

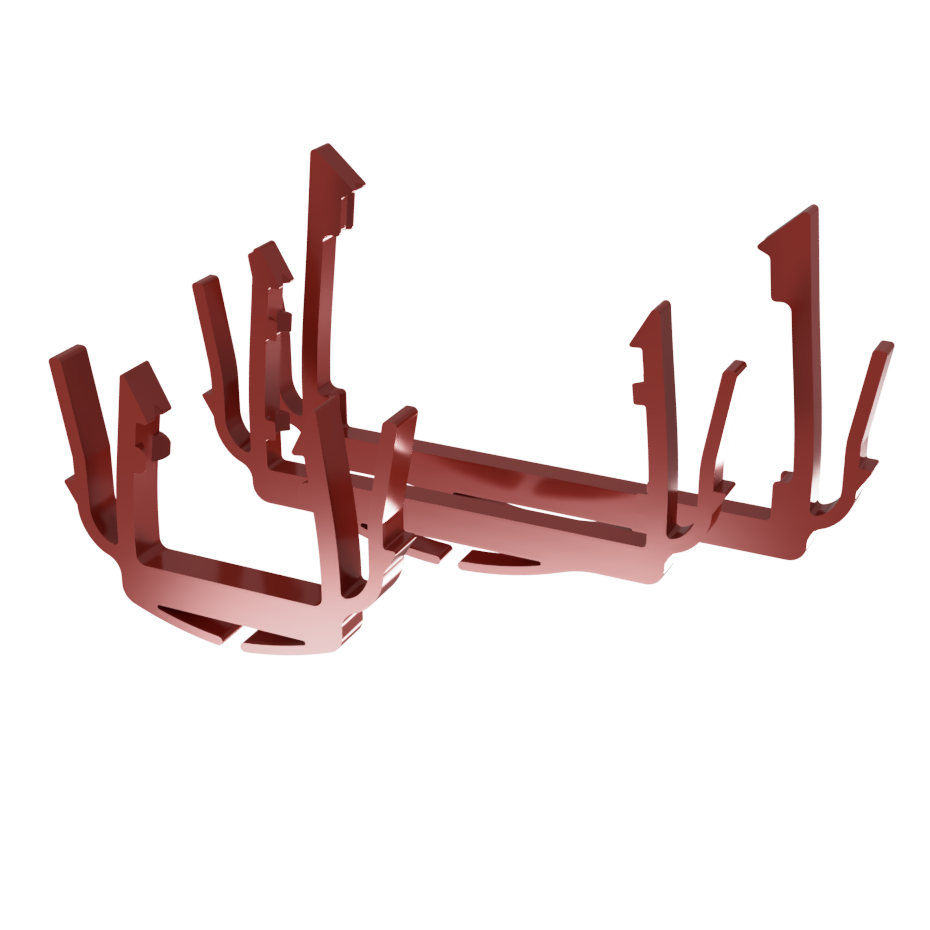

• Circuit Board Mounts
  • A4988Mount.stl To clamp on outside edges of A4988 and slide into slot on Case.stl
  • ESP32Mount.stl To clamp on outside edges of ESP32 and slide into slot on Case.stl
  • LM2596Mount.stl To clamp on outside edges of LM2596 and slide into slot on Case.stl
