Modular Magnetic Exhaust System - STL File

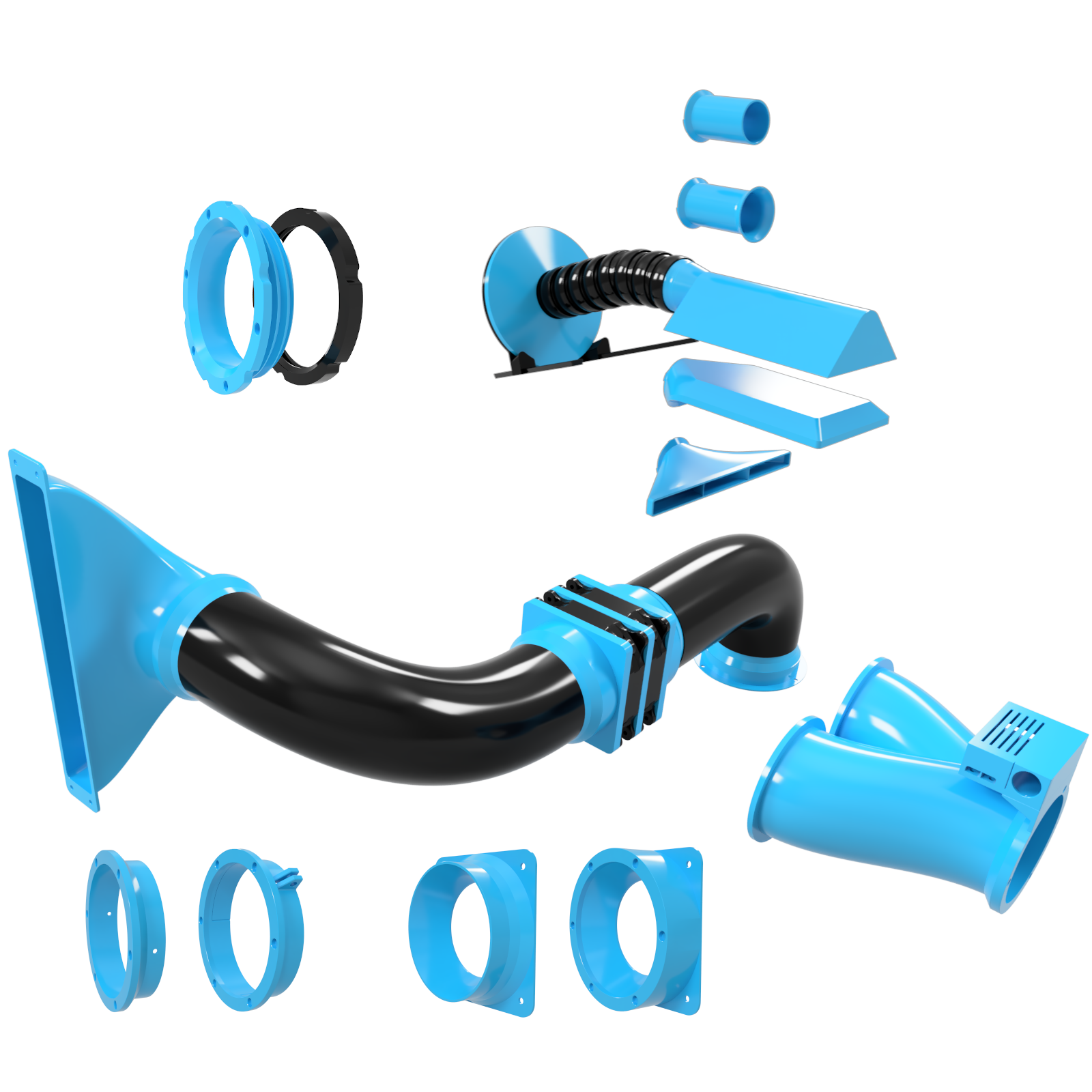

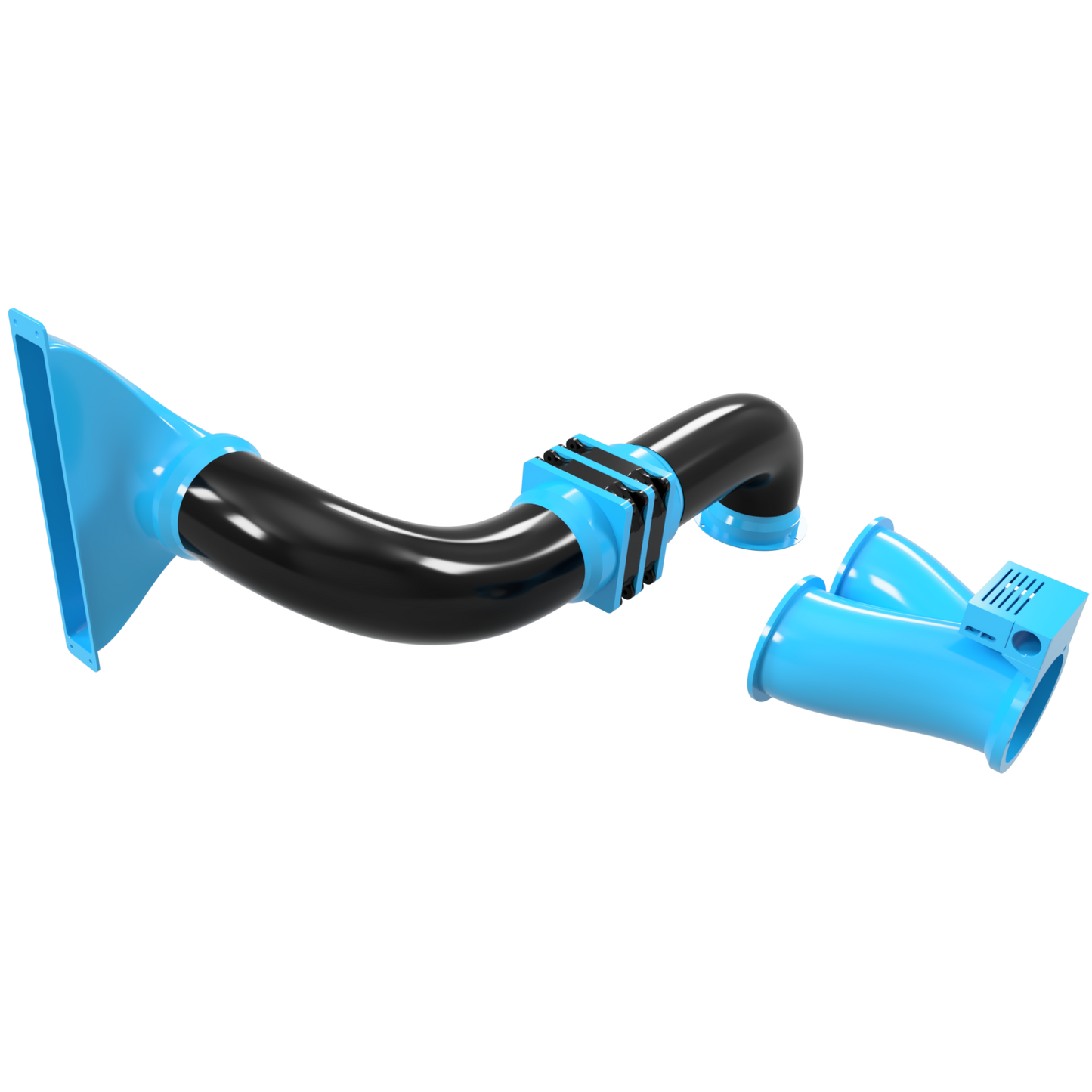

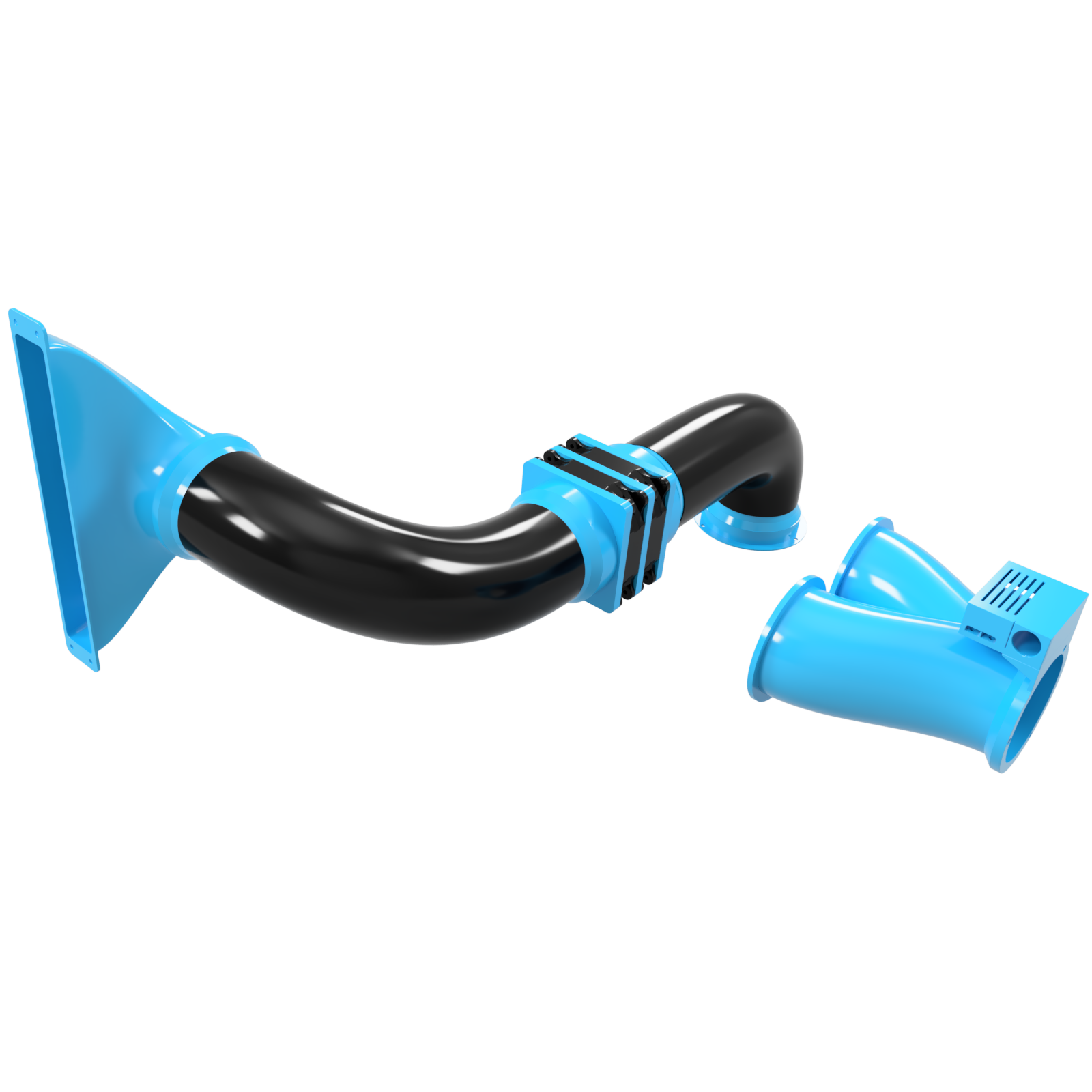

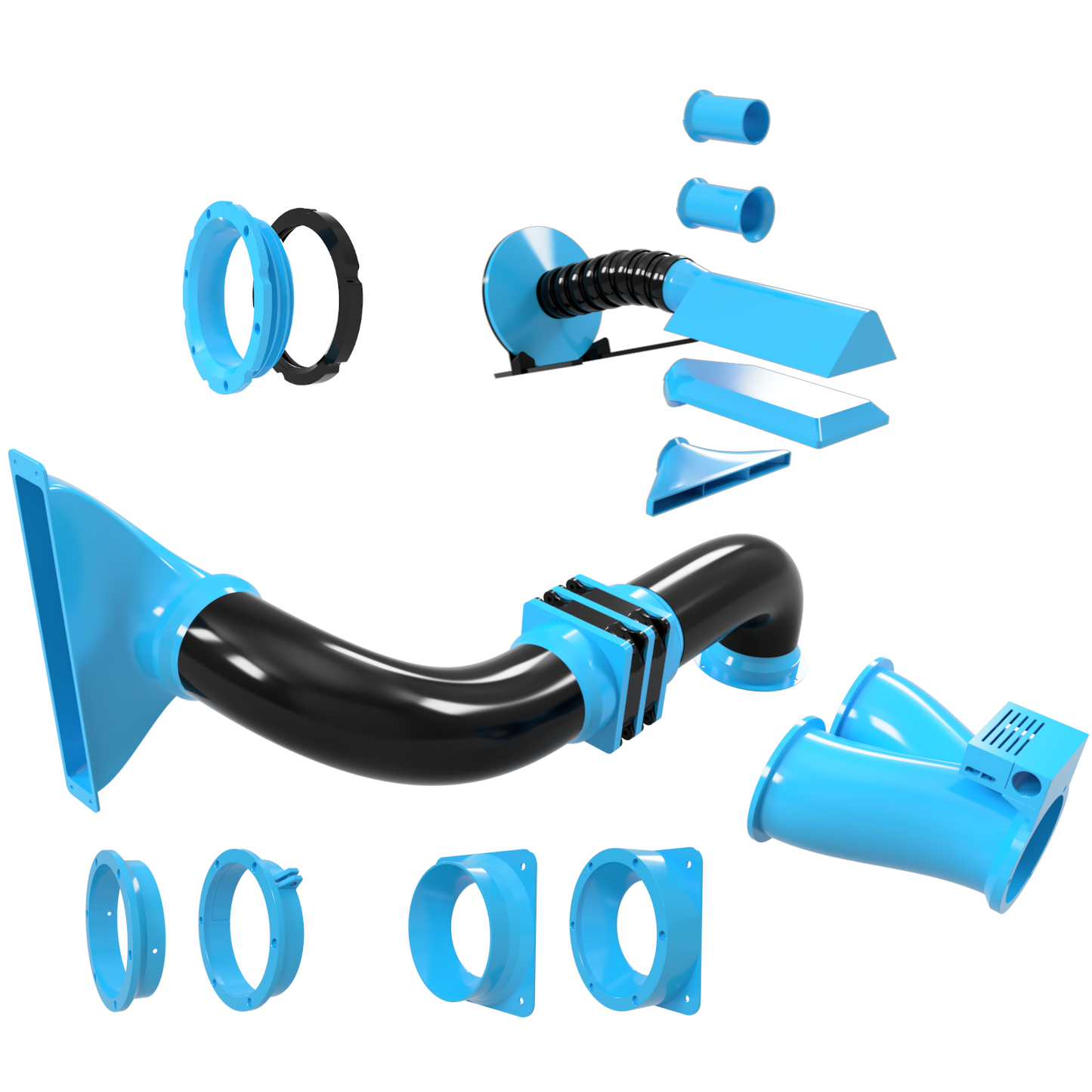

I wanted an Exhaust that I could easily modify to fit multiple enclosures and other tasks like soldering. I designed the exhaust system to work with 6x3mm magnets, 4" flexible duct hose, 120mm computer fans, M4x0.7mm Knurled insert nuts and a LM2596 Buck Converter.

Updated:

• November 2 2023: Added Soldering Accessories
• February 25 2024: Added 100mm Hole Clamp Request
• April 3 2024: Added Inline Fan Mount Request and Qidi X Max 3 Request
• April 5 2024: Modified Qidi X Max 3 Request to have slots
• April 25 2024: Modified Qidi X Max 3 Request to accommodate M3 and M4 screws

If you need any modifications, please reach out!

STL Files:

• Main

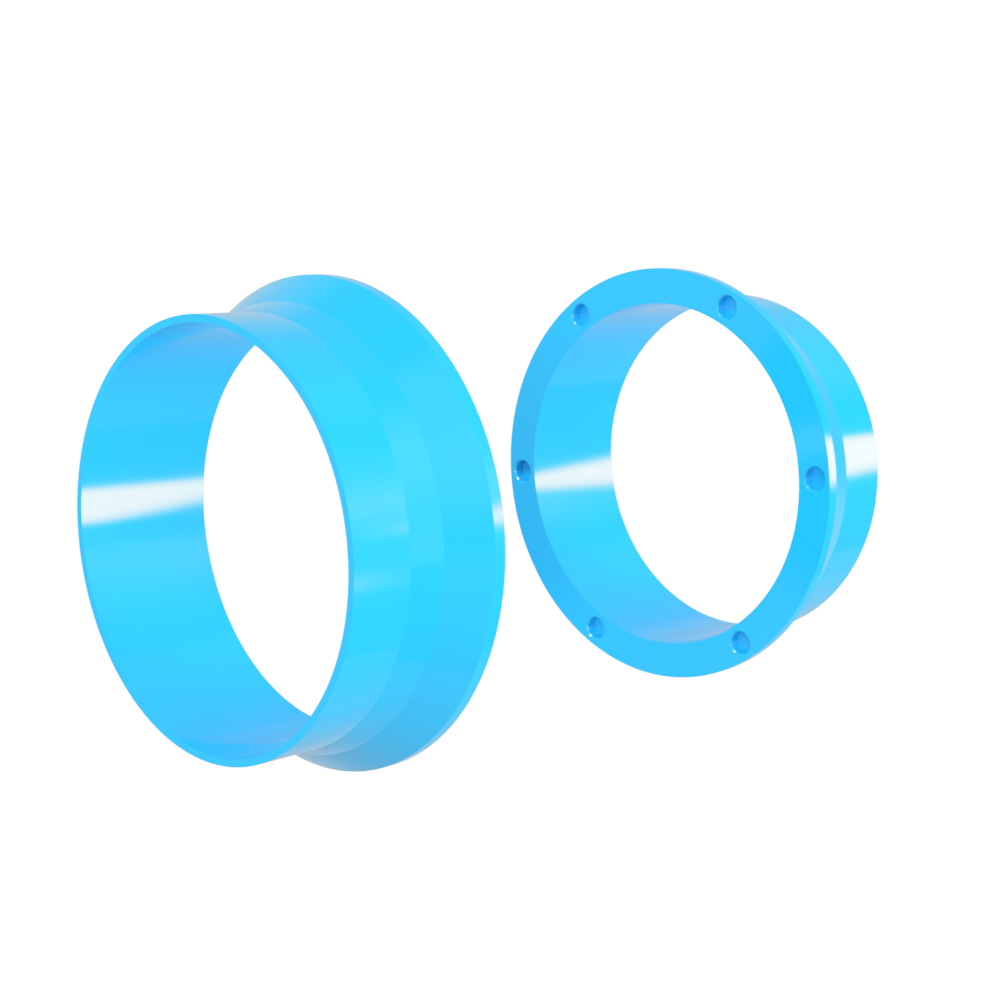

  • FlexHoseAdapter.stl Adapter to connect to 4" Flex Duct Hose

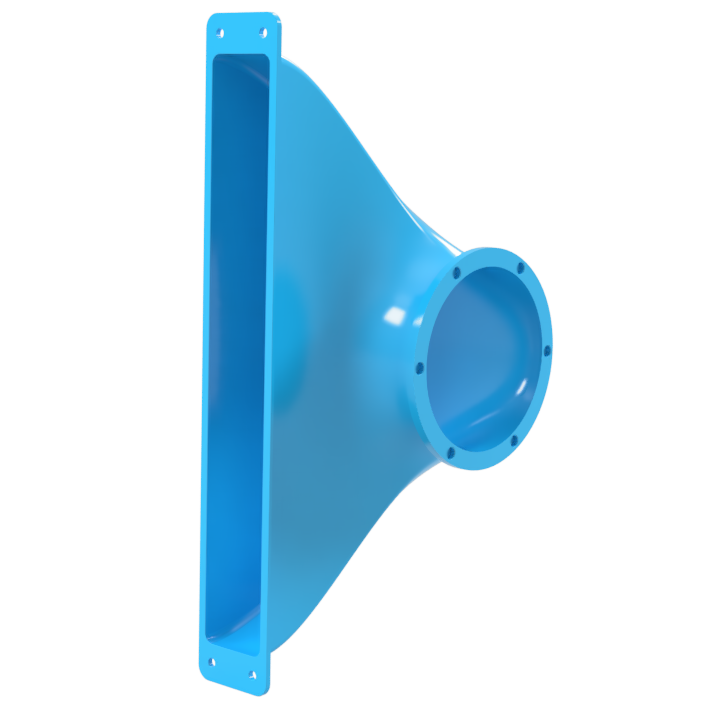

  • WindowAdapter.stl Adapter to screw into board to mount in window or other places. Can be used as inlet or outlet

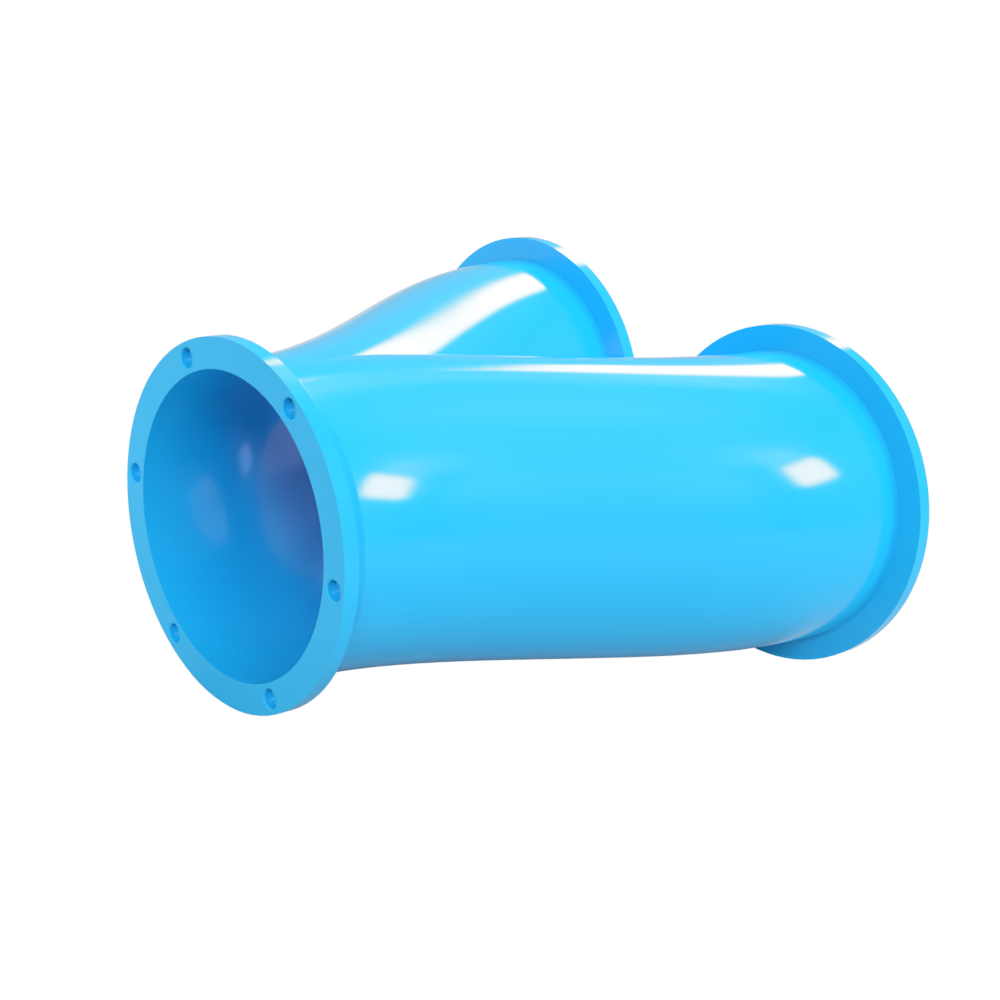

  • Y Pipe.stl Splits 2 to 1  or 1 to 2 for multiple exhausts
• Enclosure

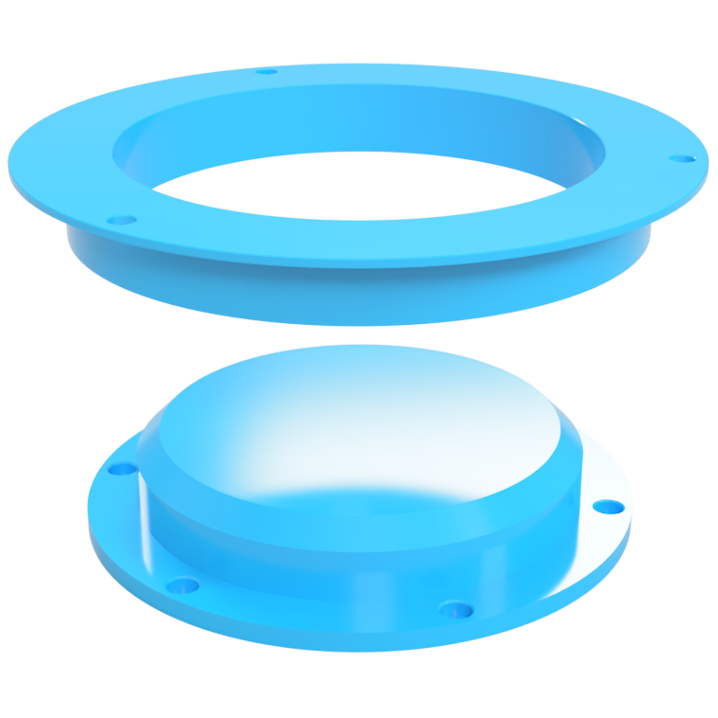

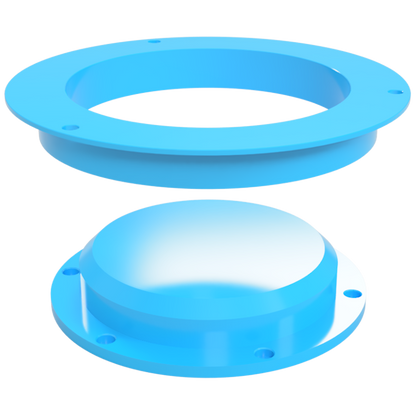

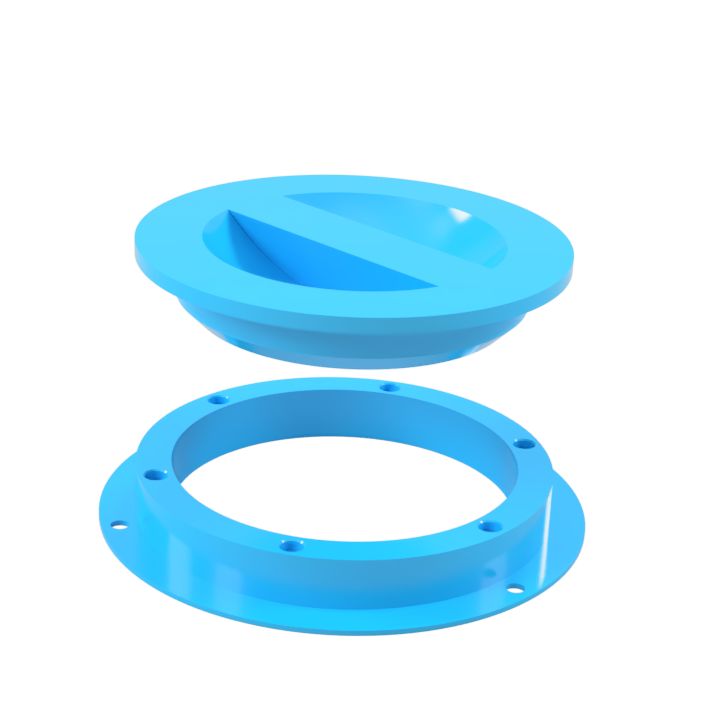

  • EnclosureExhaustMount.stl Mount for exhaust inlet or outlet
  • ExhaustMountCap.stl Can be used to cap off parts of exhaust system not in use

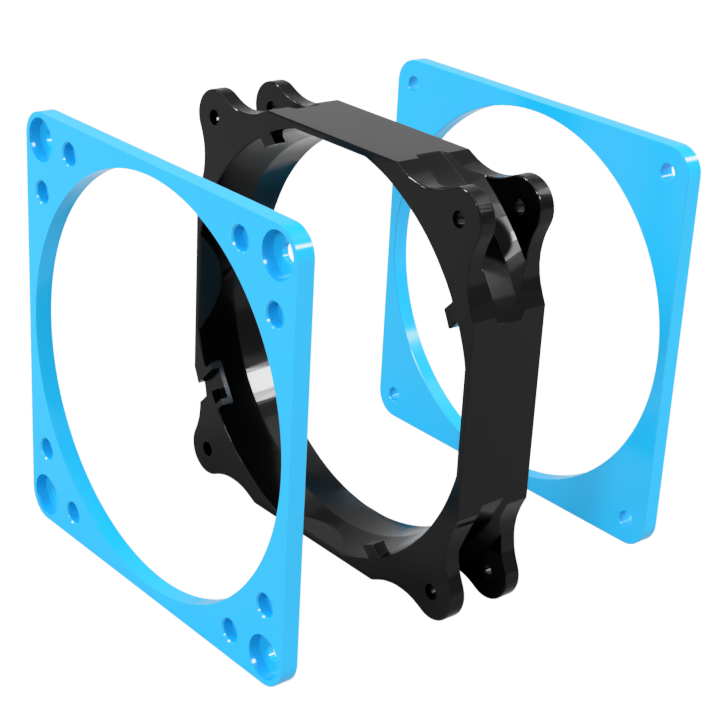

• Computer Fan
  • ComputerFanMountA.stl To go on one side of a computer fan
  • ComputerFanMountB.stl To go on another side of a computer fan

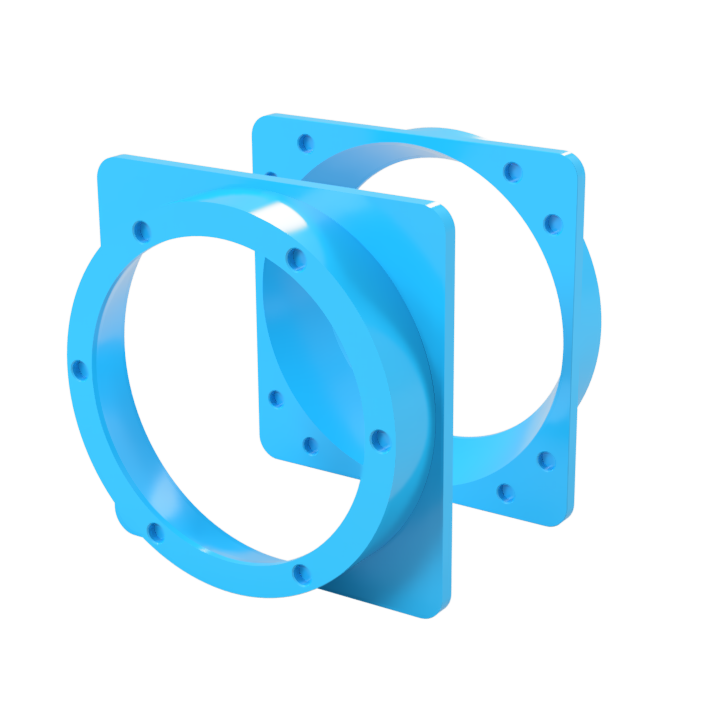

  • ComputerFanReducer.stl Reduces circumference from computer fan to fit 4" hose
• LM2596 Circuit Board

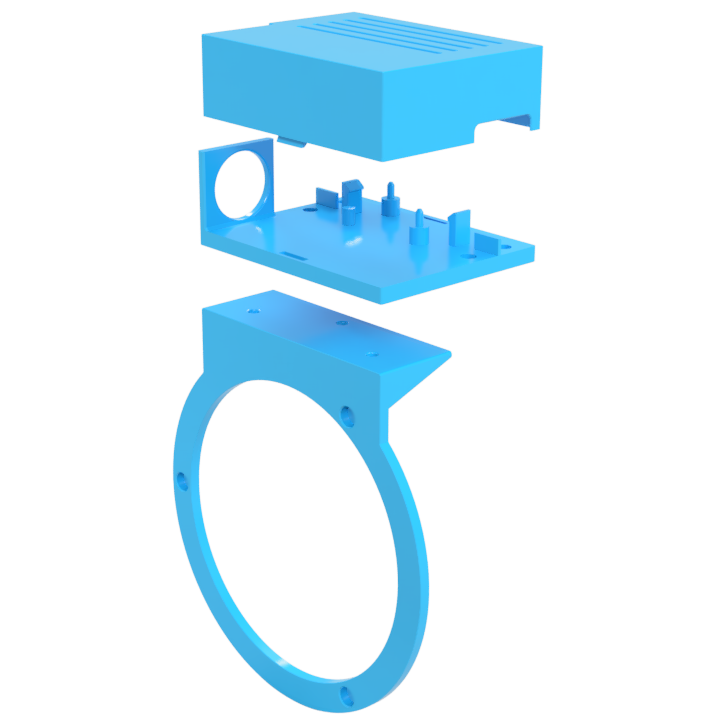

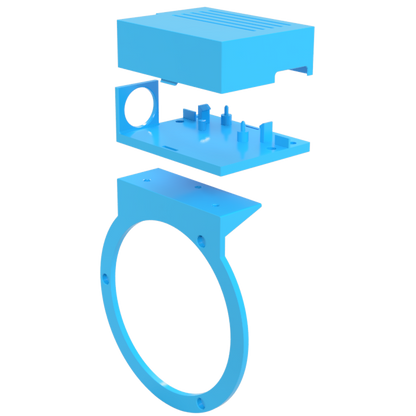

  • ExhaustCircuitAdapter.stl Allows circuit board to be placed almost anywhere along exhaust system
  • ExhaustCircuitCover.stl Covers circuit board, connects to ExhaustCircuitHolder.stl
  • ExhaustCircuitHolder.stl Mount for Rocker switch, posts and LM2596 board. Connects to ExhaustCircuitAdapter.stl

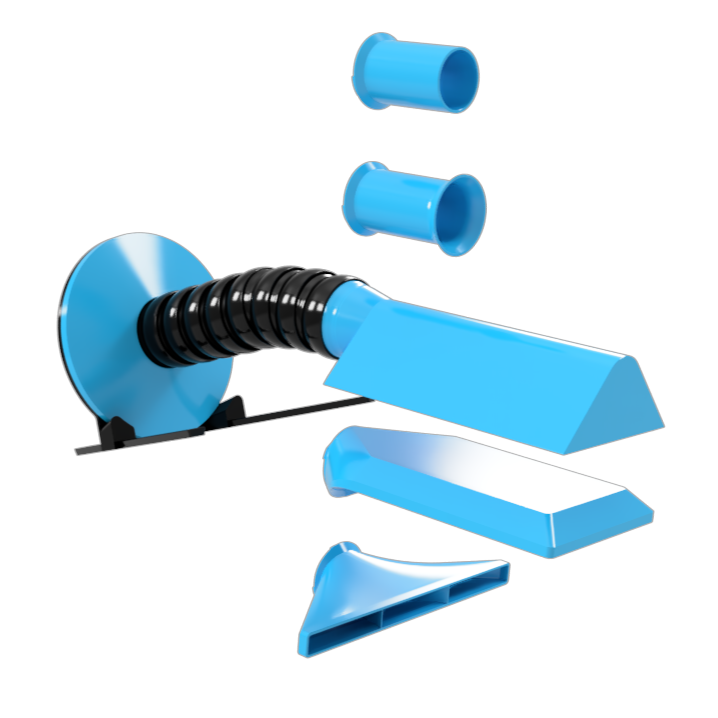

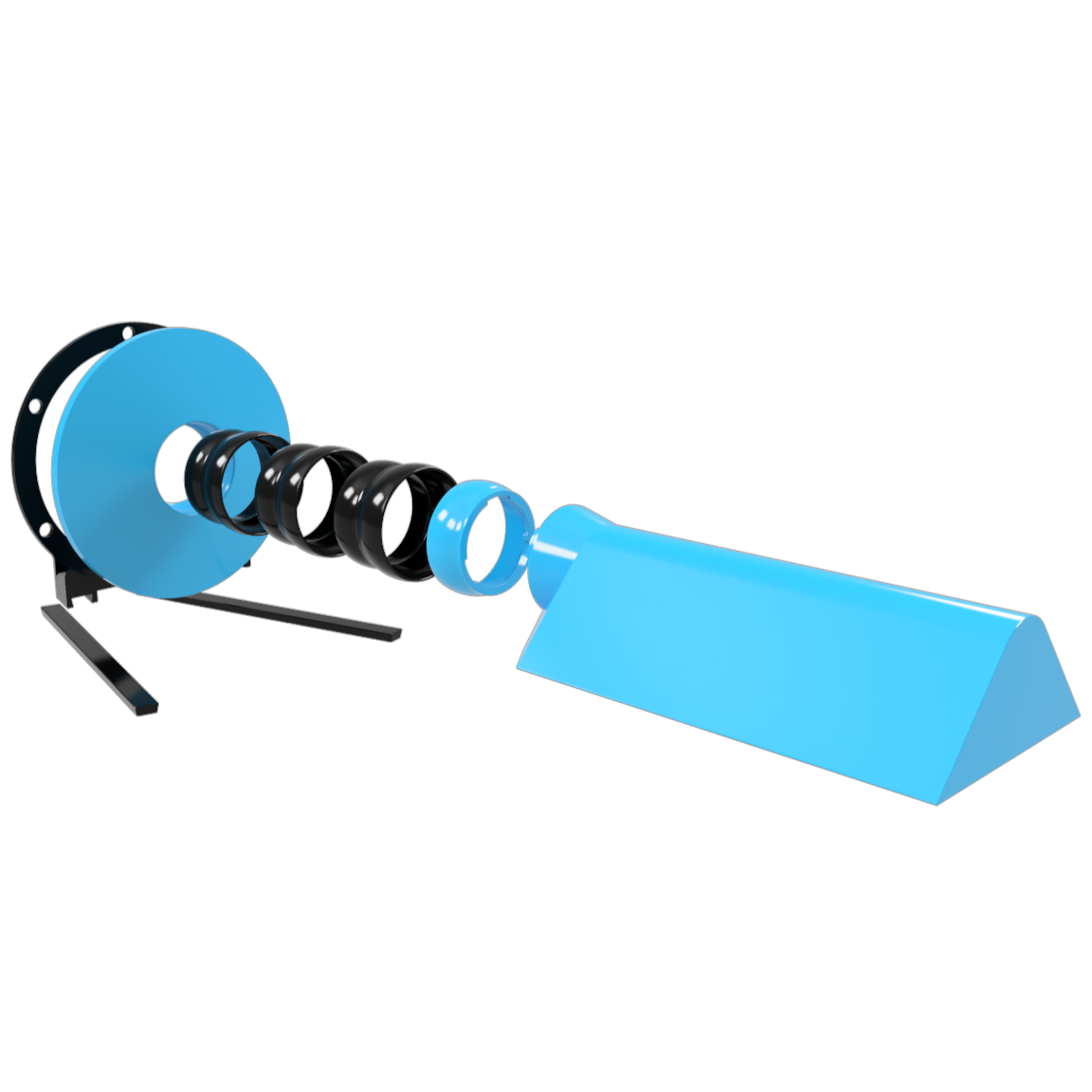

• Soldering

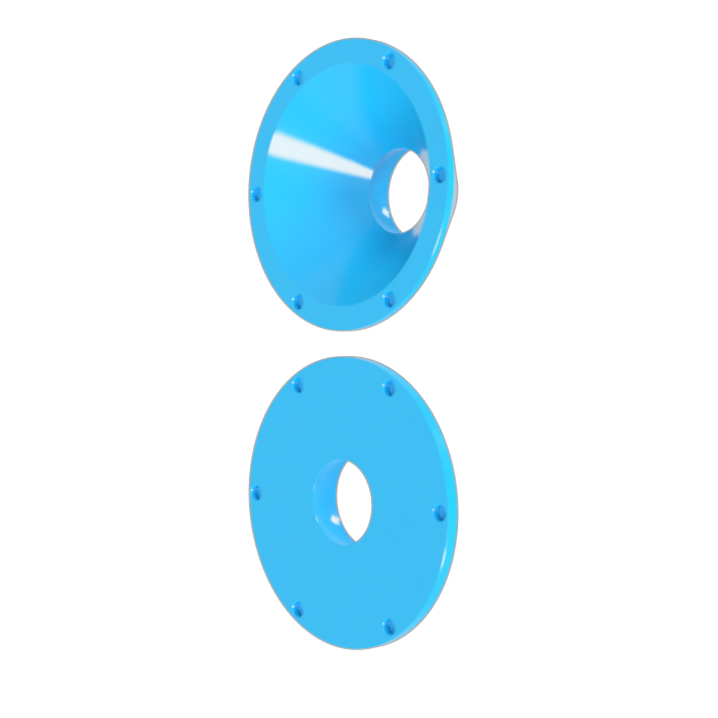

  • SolderingMagneticMountFlat.stl Flat Reducer from any 4" Magnetic Mount to SolderingFlexJoint.stl
  • SolderingMagneticMountTapered.stl Angled Reducer from any 4" Magnetic Mount to SolderingFlexJoint.stl
  • SolderingFlexJoint.stl Press together joints to make flexible hose
  • SolderingAttachmentConnector.stl Press together joint to connect SolderingFlexJoint.stl to any Soldering Attachment
  • SolderingAttachmentFlatFan.stl Long flat nozzle, effective at close proximity
  • SolderingAttachmentHoodSlim.stl Slim fume hood, effective along centerline of hood
  • SolderingAttachmentHoodSlotted.stl Slotted fume hood, effective consistently across entire hood
  • SolderingAttachmentNozzleRegular.stl Plain Nozzle, effective for a few inches
  • SolderingAttachmentNozzleFlanged.stl Plain Nozzle with Flange for increased effectiveness, effective for a few inches

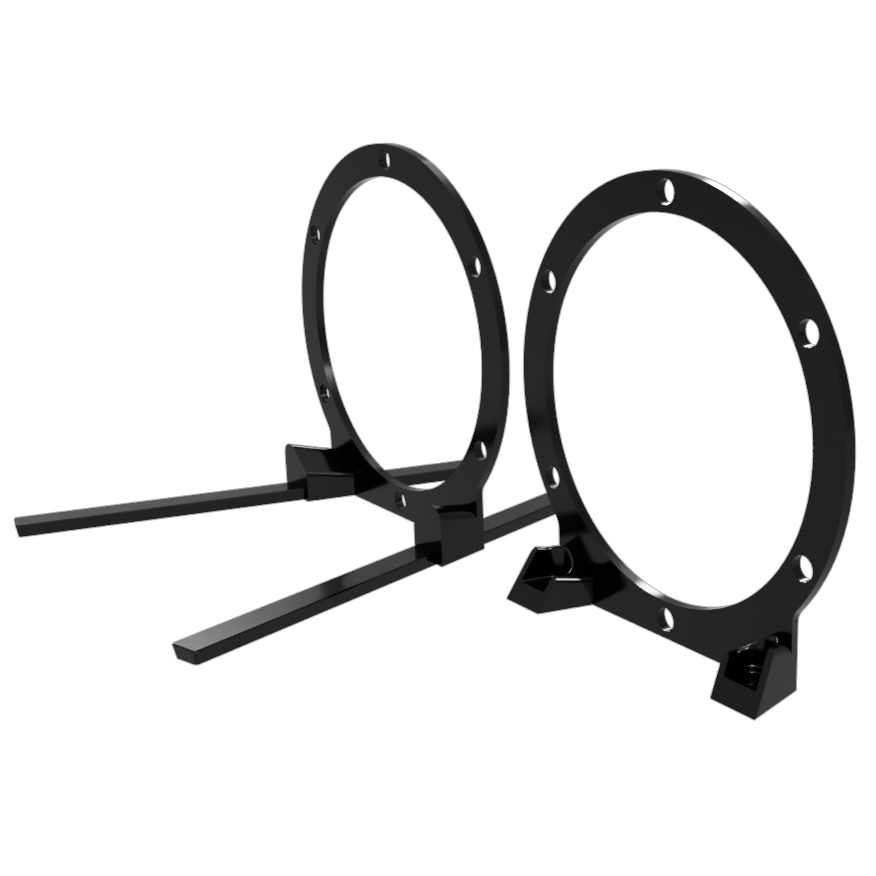

  • SolderingStandScrewType.stl Connects to any 4" Magnetic Mount to add stabilization and needs to be screwed to an object
  • SolderingStandLegType.stl Connects to any 4" Magnetic Mount to add stabilization and can be placed on any surface. Requires SolderingStandLeg.stl
  • SolderingStandLeg.stl Legs for SolderingStandLegType.stl

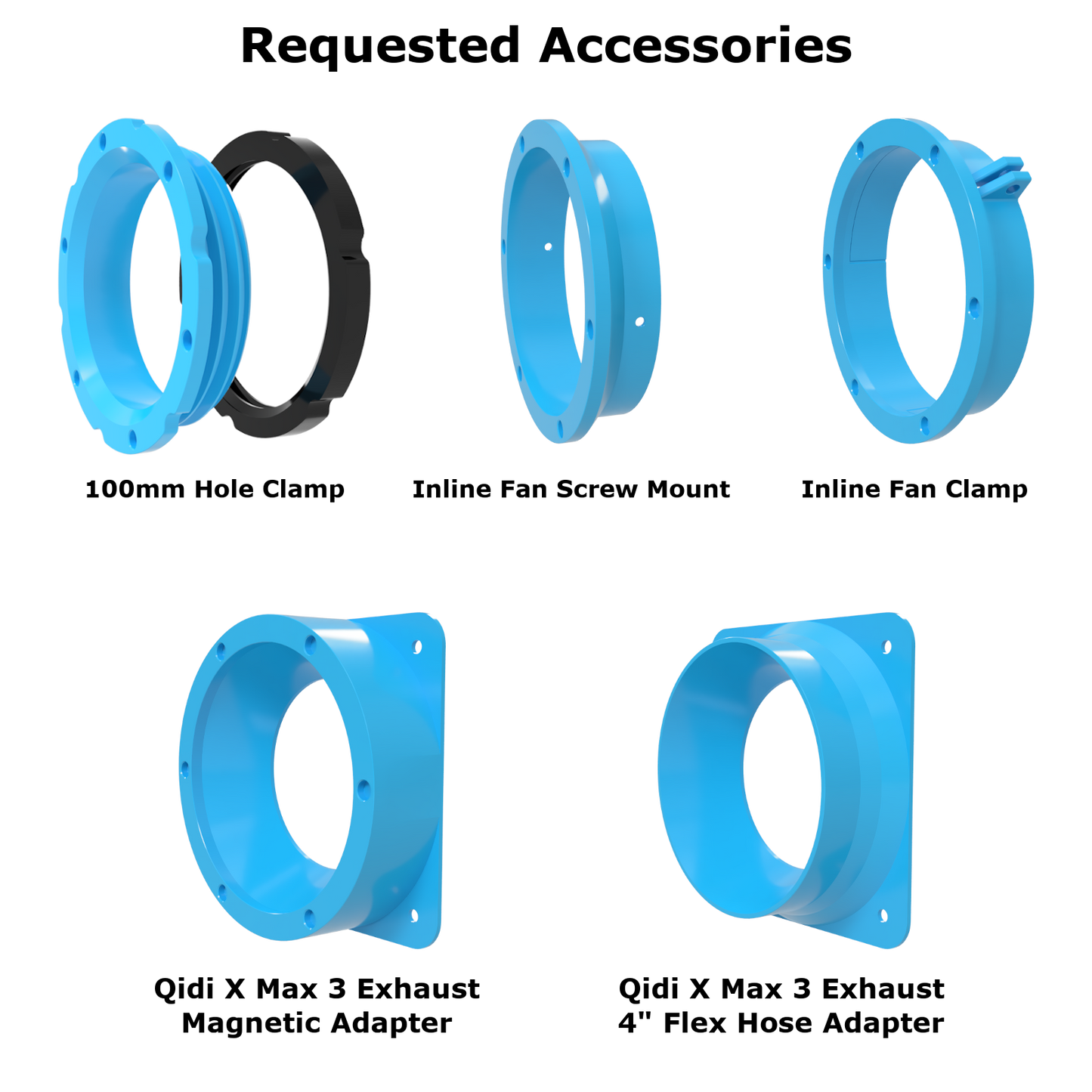

• Requests (Not Tested)
  • 100mmHoleClampAdapter.stl Magnetic Mount with threads to go through a 100mm hole in a window or wood
  • 100mmHoleClampNut.stl Nut to screw onto 100mmHoleClampAdapter.stl
  • InlineFanClampMount.stl Magnetic Mount for a 4" Inline Fan, designed to use small bolt to tighten clamp.
  • InlineFanScrewMount.stl Magnetic Mount for a 4" Inline Fan, designed to use 2 small screws.
  • QidiXMax3Exhaust4inchFlexHoseAdapterM3Screws.stl Flex Hose Adapter for Qidi X Max 3 Exhaust - M3 Screws
  • QidiXMax3Exhaust4inchFlexHoseAdapterM4Screws.stl Flex Hose Adapter for Qidi X Max 3 Exhaust - M4 Screws
  • QidiXMax3ExhaustMagneticAdapterM3Screws.stl Magnetic Mount for Qidi X Max 3 Exhaust - M3 Screws
  • QidiXMax3ExhaustMagneticAdapterM4Screws.stl Magnetic Mount for Qidi X Max 3 Exhaust - M4 Screws
