I designed the Mini Spool Holders to be able to hold up to around 80g of filament and I wrote the TARE weight on each one so I would know exactly how much filament I have left!
Print with wall count, infill and top/bottom layer settings so that:
- 16mm Mini Spool Holders Left and Right pieces are 71-74g combined
- 32mm Mini Spool Holders Left and Right pieces are 95-99g combined
Then use a combination of the 1-3mm rings to bring the weight to exactly 75g and 100g.

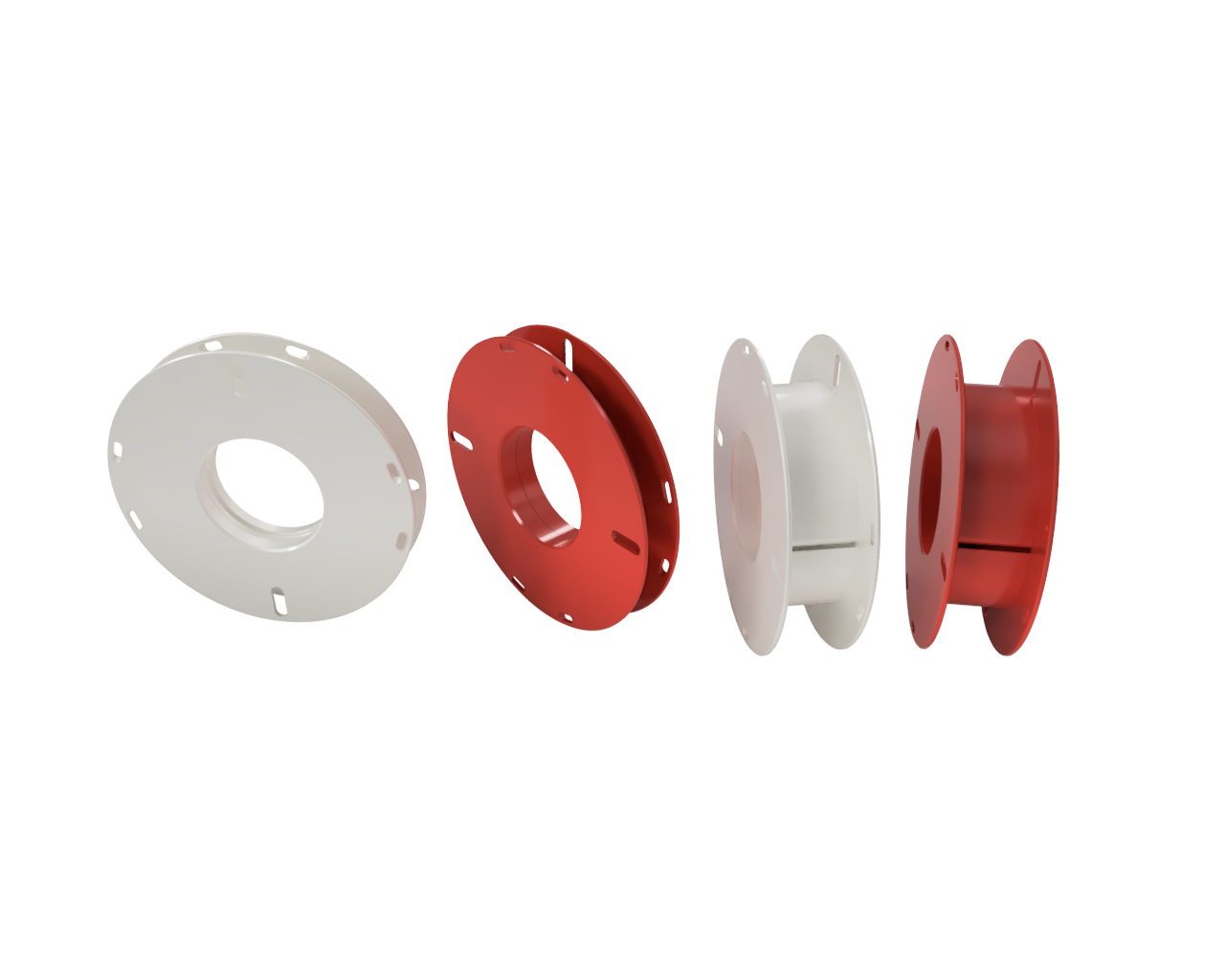

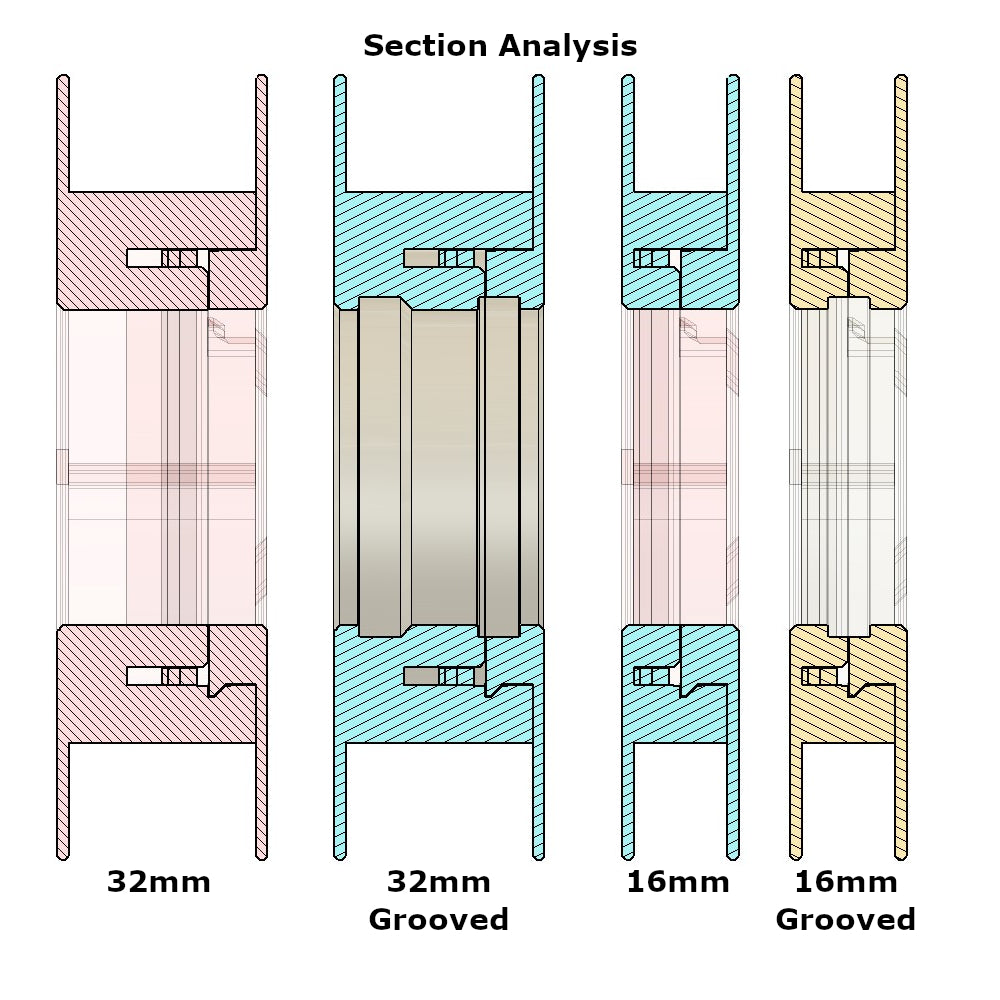

STL Files:

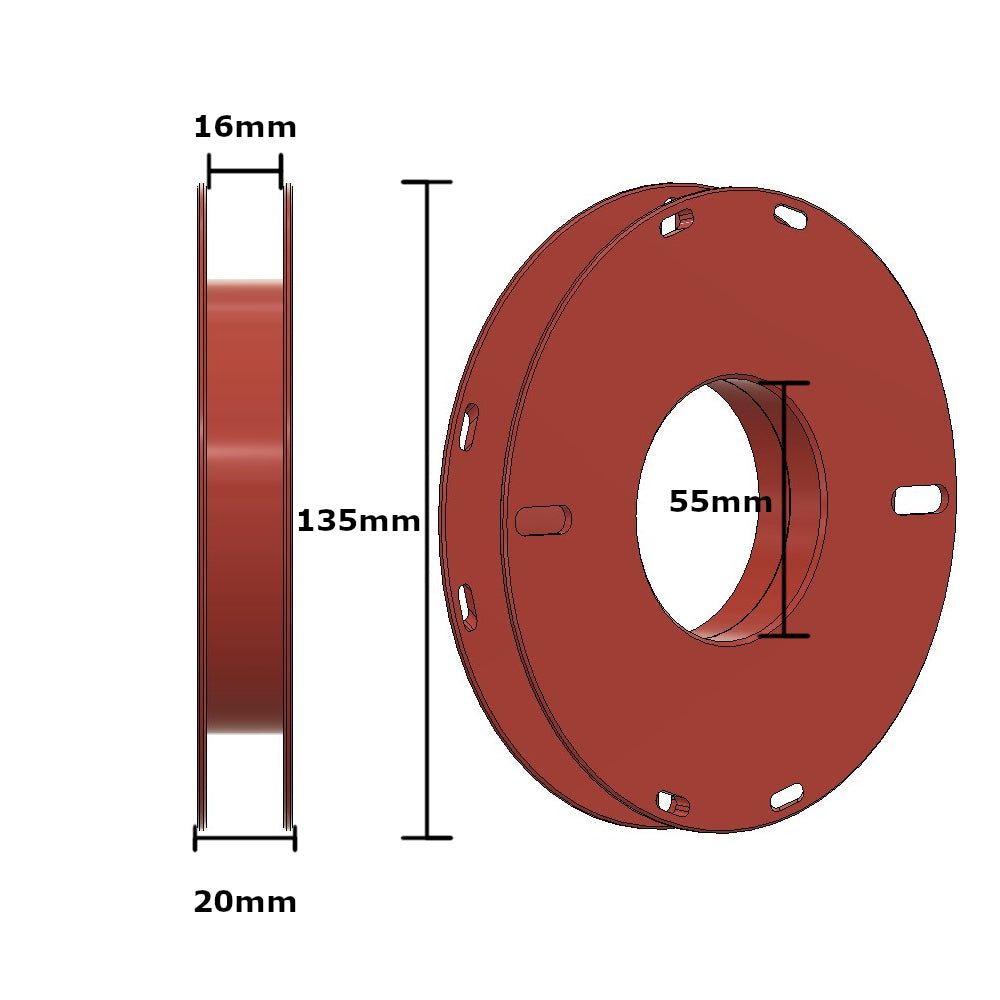

- 16mm Mini Spool Holder
- 16mm Mini Spool Holder with groove for 1 bearing in center

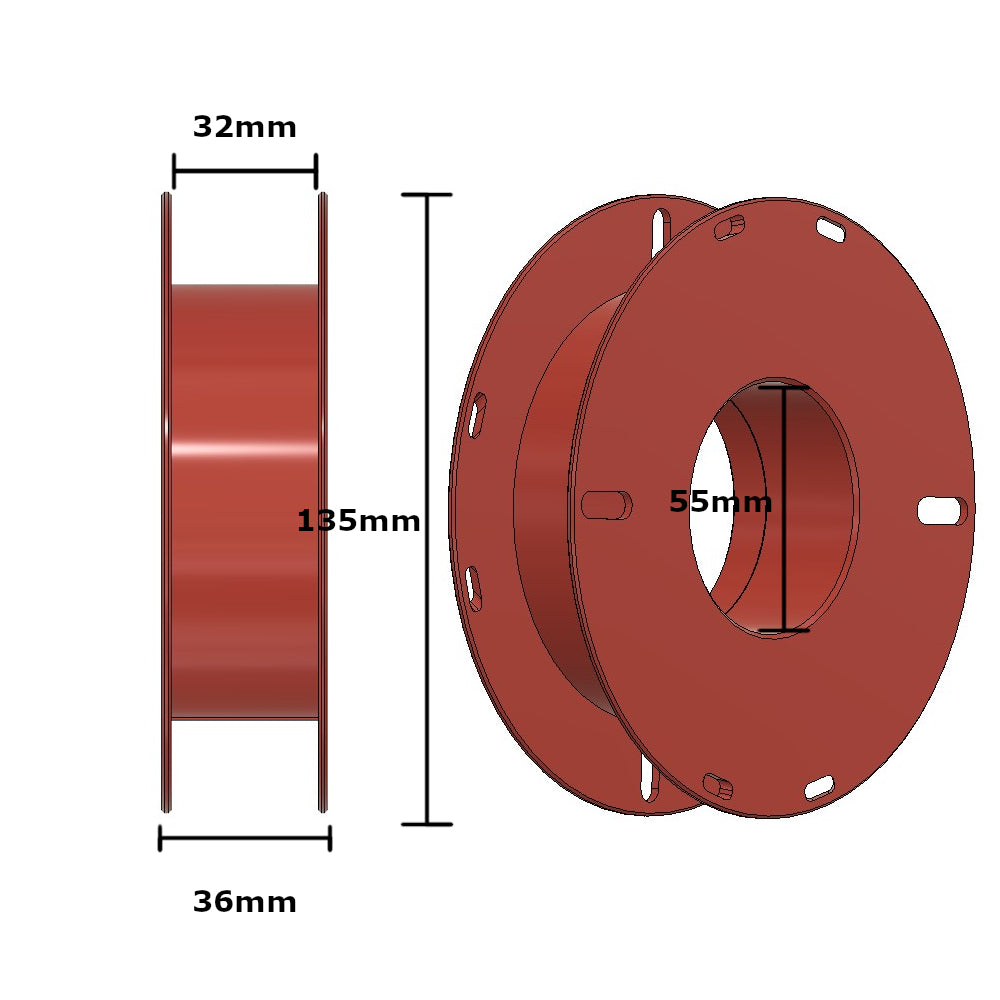

- 32mm Mini Spool Holder
- 32mm Mini Spool Holder with groove for 2 bearings

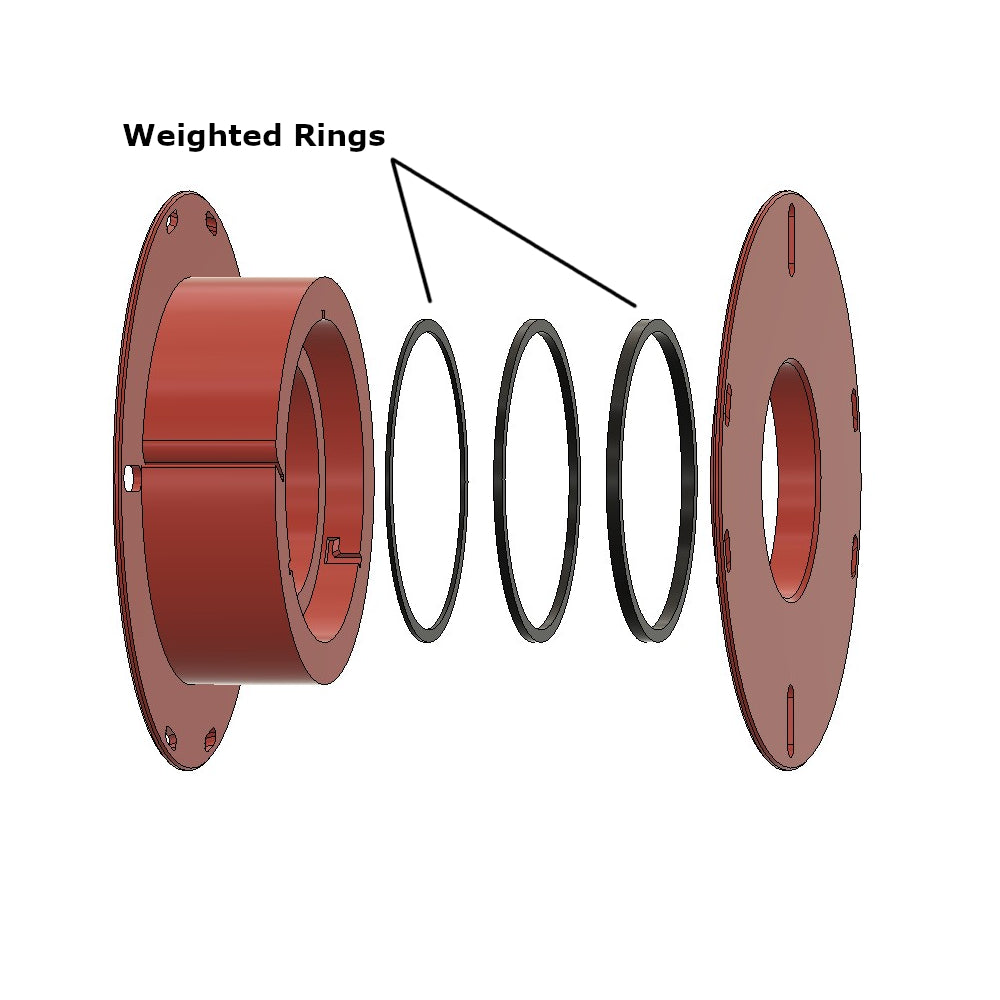

- Rings to adjust weight, 1-3mm thick
Print with wall count, infill and top/bottom layer settings so that:
- 16mm Mini Spool Holders Left and Right pieces are 71-74g combined
- 32mm Mini Spool Holders Left and Right pieces are 95-99g combined
Then use a combination of the 1-3mm rings to bring the weight to exactly 75g and 100g.
STL Files:
- 16mm Mini Spool Holder
- 16mm Mini Spool Holder with groove for 1 bearing in center
- 32mm Mini Spool Holder
- 32mm Mini Spool Holder with groove for 2 bearings
- Rings to adjust weight, 1-3mm thick
