STL FILES ONLY, AS IS
**Each purchase includes Core STL Files plus corresponding Tablet / iPad STL Files.

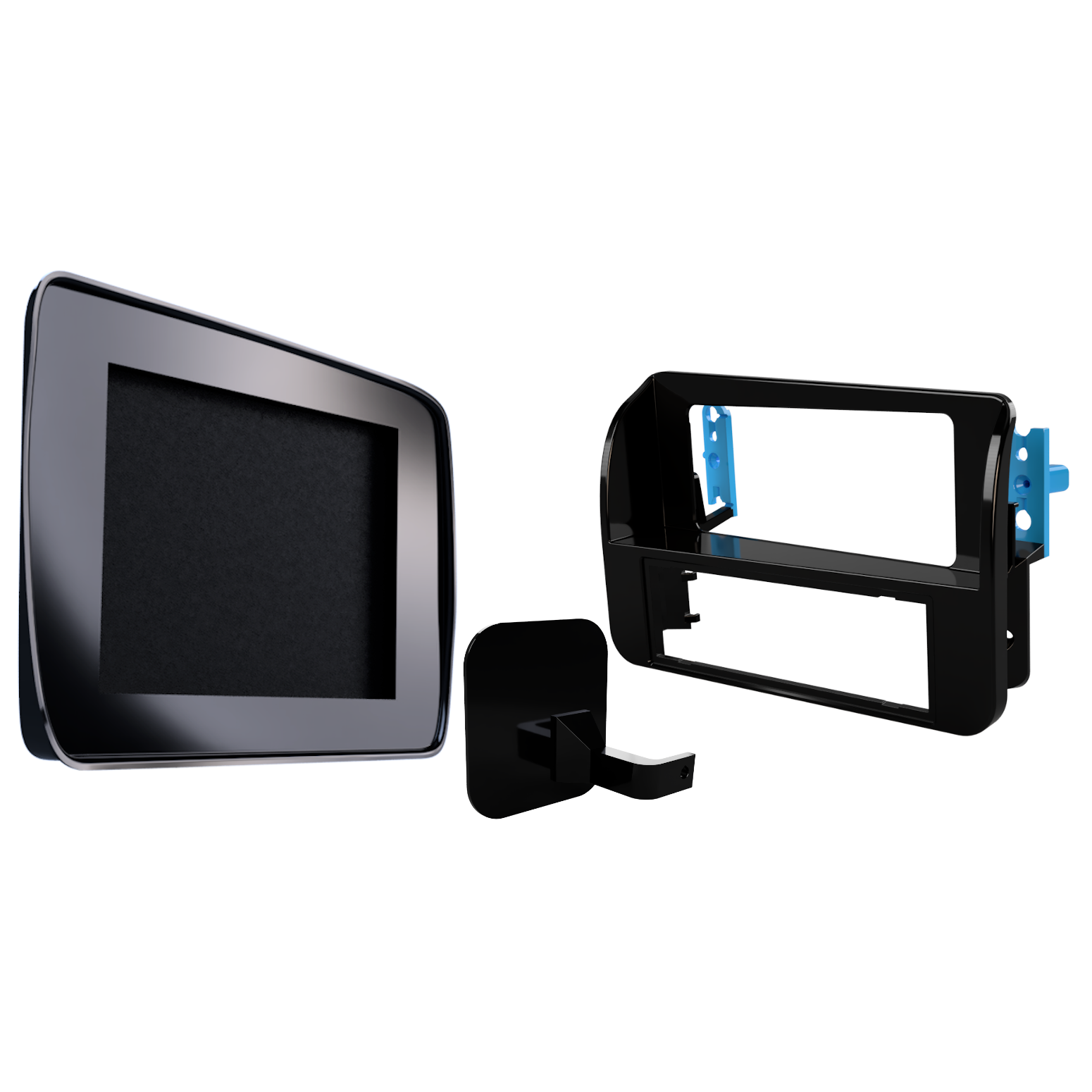

I designed this kit to fit 2003 - 2007 Chevrolet/GMC HD Trucks.

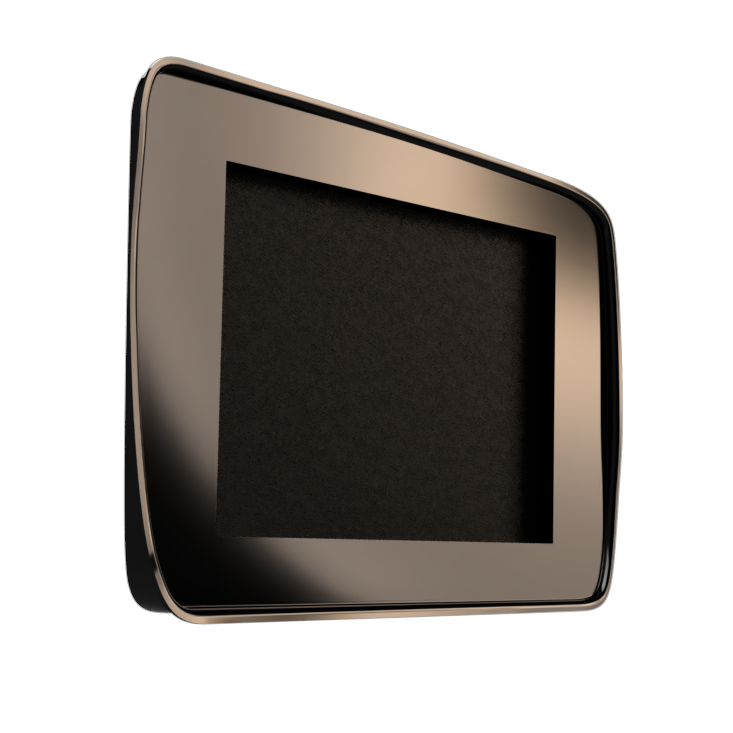

This kit is for installing a Tablet/iPad in the dash of the truck. After printing, I recommended that faceplates are hand sanded, imperfections filled with Sandable Primer and painted with Hammered Texture Paint. There are a few STL Files for tools to assist with the sanding and painting
If you don't see your tablet/iPad on the list, there is a "Blank Faceplate" option that you can use as a base to modify on your own as I will not be offering any further modifications to the files.
Print with PETG, ABS or ASA. Do not print with PLA or PLA+ otherwise it will warp in the heat and be brittle in the cold.
Core STL Files:
-

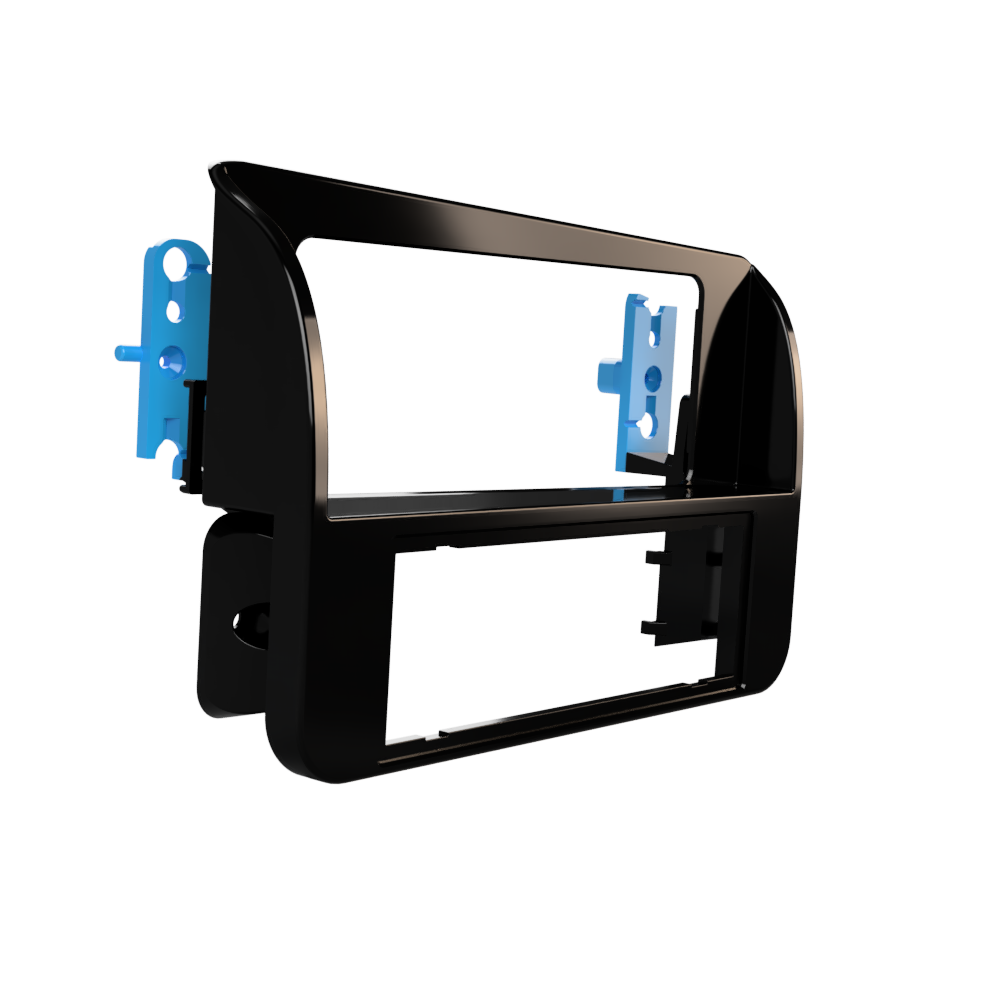

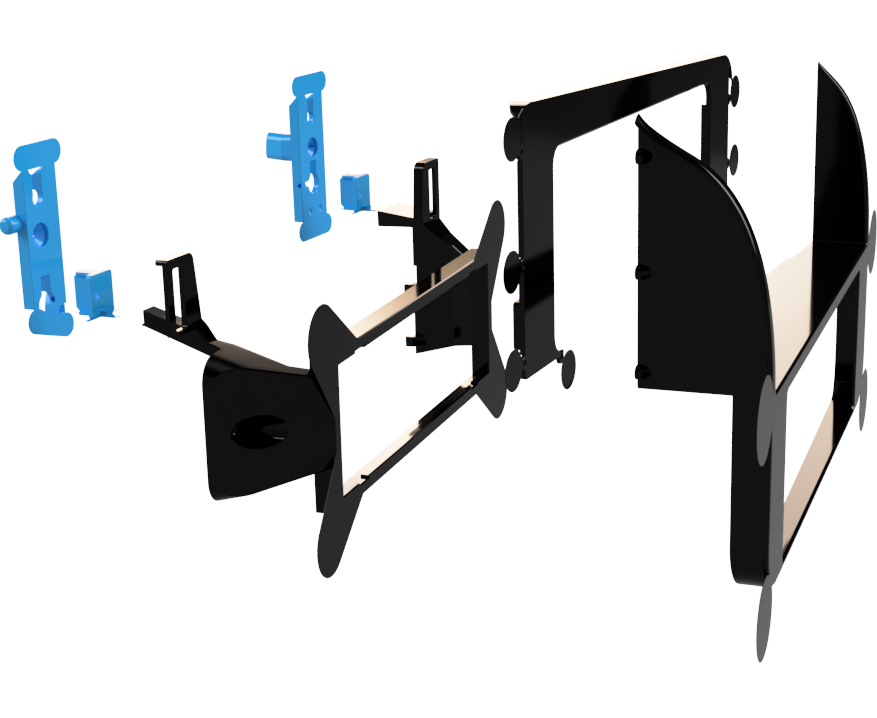

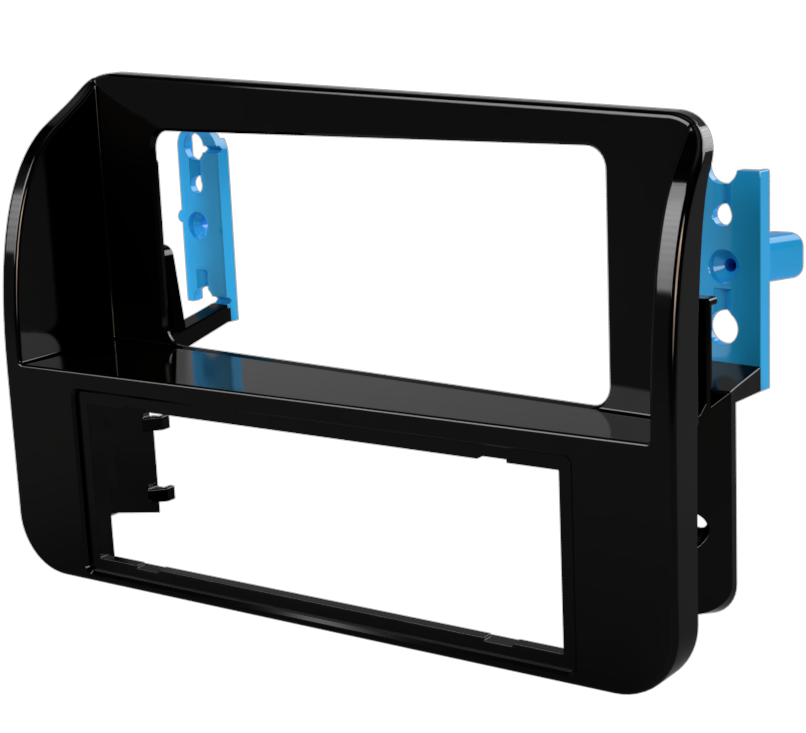

Lower Console
- FacePlateClip.stl Tabs to install the OEM Metal Lower Face Plate Clips onto. Allows the Lower Faceplate STL's to pop on and off.
- HVACMountLeft_ButtonScrew.stl Left HVAC Mount
- HVACMountRight.stl Right HVAC Mount
- LowerFaceplateB.stl Smaller Body of the Lower Console Faceplate
- LowerFaceplateA.stl Main Body of the Lower Console Faceplate
- LowerFaceplateA_CustomBrimV1.stl Main Body of the Lower Console Faceplate, has custom brim.
- LowerFaceplateA_CustomBrimV2.stl Main Body of the Lower Console Faceplate, has custom brim.
- RadioMount.stl Main structural component of the Lower Console, holds all the pieces and screws to truck.
-

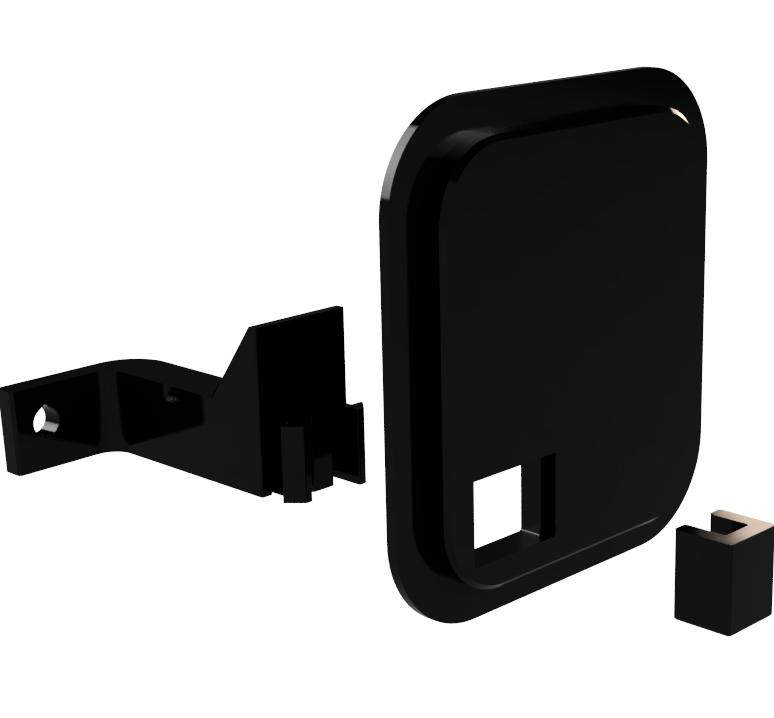

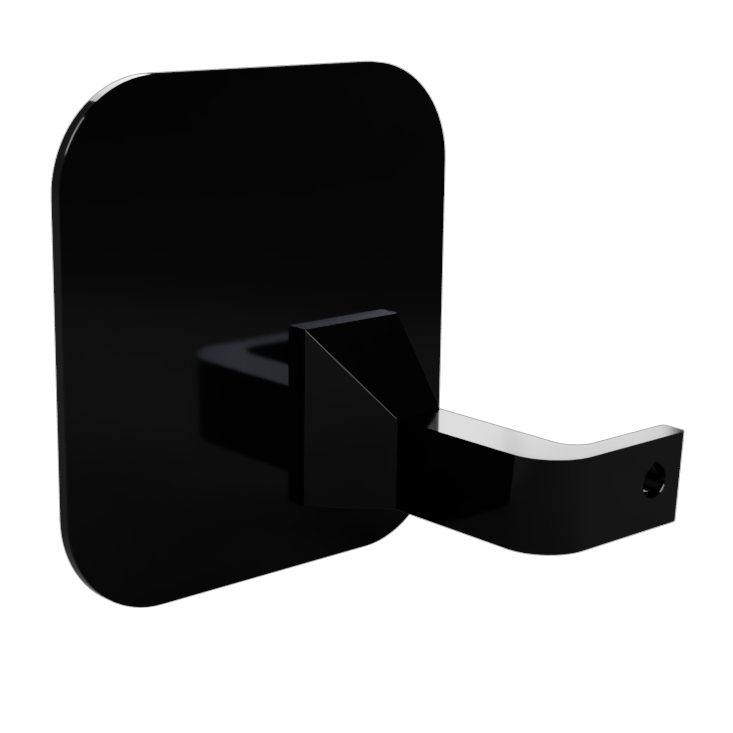

Vent Cover
- VentPlate.stl Cover Plate to block vent.
- VentMount.stl Clicks into VentPlate.stl and screws into truck.
- VentMount_TightFit_5.20mm.stl Reduced Clearance version of VentMount.stl if neccessary to get tight fit
- VentMount_SuperTightFit_5.05mm.stl Reduced Clearance version of VentMount.stl if neccessary to get tight fit
- VentSecureClip.stl Clicks into VentMount.stl after it is inserted into VentPlate.stl to lock the tabs.
- VentSecureClip_TightFit.stl Reduced Clearance version of VentSecureClip.stl if neccessary to get tight fit
-
Sanding Tools
- SandingHolder_LowerFaceplateA_v1.stl Block with contours to hold LowerFaceplateA so it can sanded easier. Has screw holes to be attached to surface.
- SandingHolder_LowerFaceplateA_Short_v1.stl Shorter version of SandingHolder_LowerFaceplateA_v1.stl
- SandingHolder_LowerFaceplateA_v2.stl Block with contours to hold LowerFaceplateA so it can sanded easier. Has indents so it can be easily gripped and has an optional slot for SandingHolder_LowerFaceplateA_Clamp_v2.stl to be installed.
- SandingHolder_LowerFaceplateA_Clamp_v2.stl Main body and track for Clamp that connects to LowerFaceplateA
- SandingHolder_LowerFaceplateA_ClampNut_v2.stl Nut to tighten SandingHolder_LowerFaceplateA_ClampPlate_v2.stl into SandingHolder_LowerFaceplateA_Clamp_v2.stl
- SandingHolder_LowerFaceplateA_ClampPlate_v2.stl Plate to clamp LowerFaceplateA into SandingHolder_LowerFaceplateA_v2.stl
- SandingHolder_LowerFaceplateB.stl Block with contours to hold LowerFaceplateB.stl so it can sanded easier.
Tablet / iPad STL Files:
-

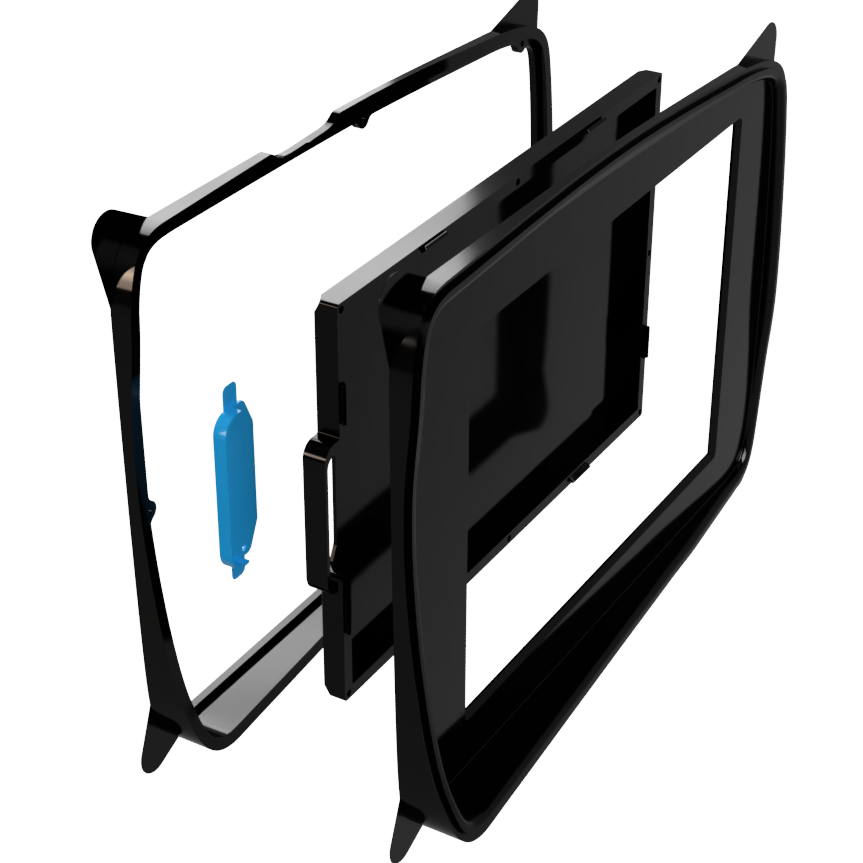

iPad 10.2 Gen 7/8/9
- Ipad10.2_Gen789_Faceplate_WithSacrificialSupport.stl Upper Console Faceplate, has support to enable bridging that can be easily cut off after printing.
- Ipad10.2_Gen789_FaceplateClamp.stl Screws into Ipad10.2_Gen789_Faceplate_WithSacrificialSupport.stl to clamp the kit to the lip of the center console. Optional if you glue the Faceplate to the Console.
- Ipad10.2_Gen789_IpadHolder_Flat.stl Screws into Ipad10.2_Gen789_Faceplate_WithSacrificialSupport.stl and holds iPad
- Ipad10.2_Gen789_IpadHolder_Indented.stl Same as Ipad10.2_Gen789_IpadHolder_Flat.stl except has an indent to give more room to insert and remove iPad
- ChargingCaseCover.stl Screws into Ipad10.2_Gen789_IpadHolder, allows access to charging cable port.
- ChargingCaseCover_CUSTOMBRIM.stl Same as ChargingCaseCover.stl except with Custom Brim.
- FaceplateSacrificalSupport_IntersectIsolationInCura.stl Tool that you can use to isolate the Faceplate Sacrifical Support in Cura using intersect feature.
- SuedeCuttingJig_Ipad10.2_Gen7_Gen8_Gen9.stl Tool to assist in cutting the Suede for Ipad10.2_Gen789_IpadHolder.
-

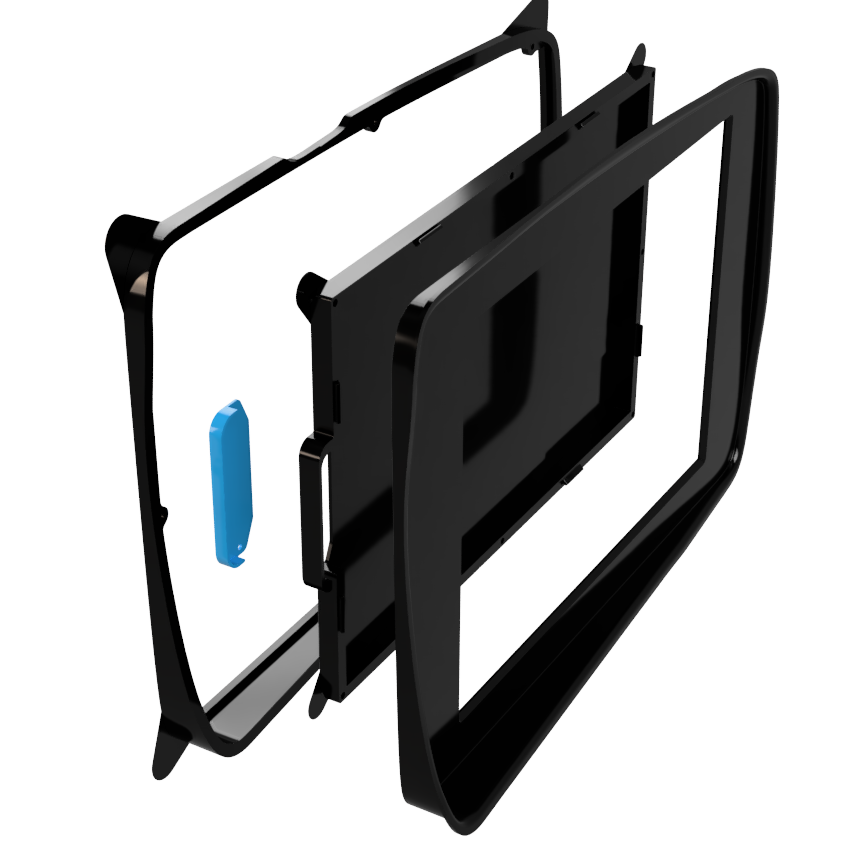

iPad Pro 11 Gen 4
- IpadPro11_Gen4_Faceplate.stl Upper Console Faceplate.
- IpadPro11_Gen4_Faceplate_WithSacrificialSupport.stl Same as IpadPro11_Gen4_Faceplate.stl except has support to enable bridging that can be easily cut off after printing.
- IpadPro11_Gen4_FaceplateClamp.stl Screws into IpadPro11_Gen4_Faceplate.stl to clamp the kit to the lip of the center console. Optional if you glue the Faceplate to the Console.
- IpadPro11_Gen4_IpadHolder.stl Screws into IpadPro11_Gen4_Faceplate.stl and holds iPad
- ChargingCaseCover.stl Screws into IpadPro11_Gen4_IpadHolder.stl, allows access to charging cable port.
- ChargingCaseCover_CUSTOMBRIM.stl Same as ChargingCaseCover.stl except with Custom Brim.
- FaceplateSacrificalSupport_IntersectIsolationInCura.stl Tool that you can use to isolate the Faceplate Sacrifical Support in Cura using intersect feature.
- SuedeCuttingJig_Ipad11_Gen4.stl Tool to assist in cutting the Suede for IpadPro11_Gen4_IpadHolder.stl
- SuedeCuttingJig_Ipad11_Gen4_Camera.stl Same as SuedeCuttingJig_Ipad11_Gen4.stl except with notch for camera
- SuedeCuttingJig_Ipad11_Gen4_WithCameraCutout.stl The missing notch from SuedeCuttingJig_Ipad11_Gen4_Camera.stl
-

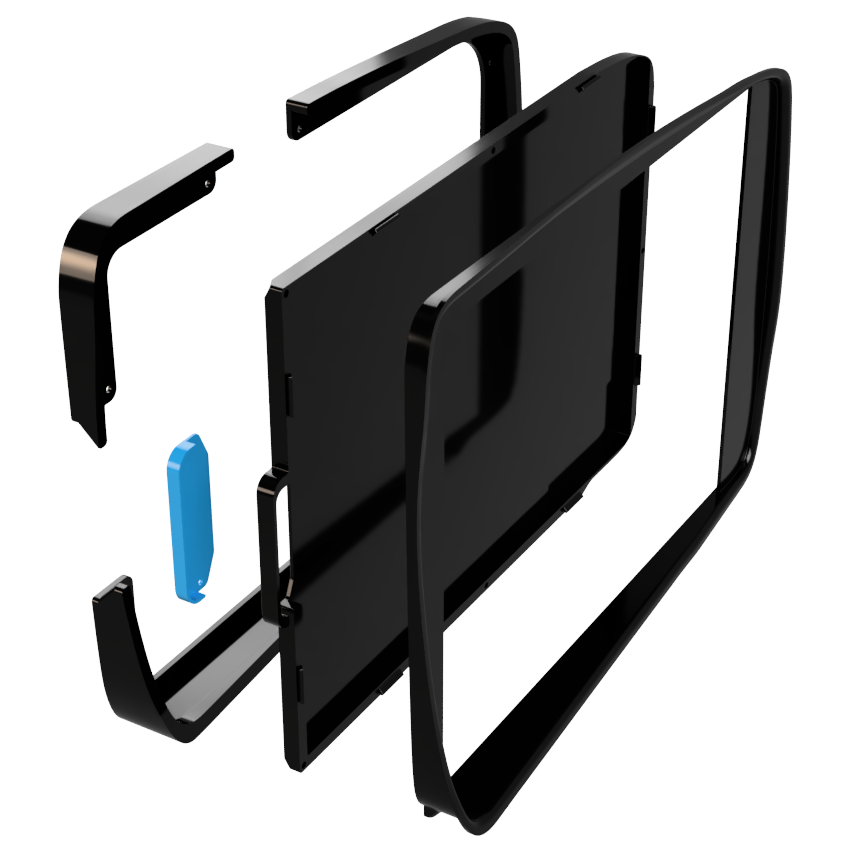

iPad Pro 12.9 Gen 4
- IpadPro12.9_Gen4_Faceplate.stl Upper Console Faceplate.
- IpadPro12.9_Gen4_Faceplate_WithSacrificialSupport.stl Same as IpadPro12.9_Gen4_Faceplate.stl except has support to enable bridging that can be easily cut off after printing.
- IpadPro12.9_Gen4_FaceplateClamp_BottomLeft.stl Screws into IpadPro12.9_Gen4_Faceplate.stl to clamp the kit to the lip of the center console. Optional if you glue the Faceplate to the Console.
- IpadPro12.9_Gen4_FaceplateClamp_BottomRight.stl Screws into IpadPro12.9_Gen4_Faceplate.stl to clamp the kit to the lip of the center console. Optional if you glue the Faceplate to the Console.
- IpadPro12.9_Gen4_FaceplateClamp_TopLeft.stl Screws into IpadPro12.9_Gen4_Faceplate.stl to clamp the kit to the lip of the center console. Optional if you glue the Faceplate to the Console.
- IpadPro12.9_Gen4_FaceplateClamp_TopRight.stl Screws into IpadPro12.9_Gen4_Faceplate.stl to clamp the kit to the lip of the center console. Optional if you glue the Faceplate to the Console.
- IpadPro12.9_Gen4_IpadHolder.stl Screws into IpadPro12.9_Gen4_Faceplate.stl and holds iPad
- ChargingCaseCover.stl Screws into IpadPro12.9_Gen4_IpadHolder.stl, allows access to charging cable port.
- ChargingCaseCover_CUSTOMBRIM.stl Same as ChargingCaseCover.stl except with Custom Brim.
- FaceplateSacrificalSupport_IntersectIsolationInCura.stl Tool that you can use to isolate the Faceplate Sacrifical Support in Cura using intersect feature.
- SuedeCuttingJigA_IpadPro12.9_Gen4.stl Tool to assist in cutting the Suede for IpadPro12.9_Gen4_IpadHolder.stl
- SuedeCuttingJigA_IpadPro12.9_Gen4.stl Tool to assist in cutting the Suede for IpadPro12.9_Gen4_IpadHolder.stl
- SuedeCuttingJigA_IpadPro12.9_Gen4.stl Tool to assist in cutting the Suede for IpadPro12.9_Gen4_IpadHolder.stl
- SuedeCuttingJigA_IpadPro12.9_Gen4.stl Tool to assist in cutting the Suede for IpadPro12.9_Gen4_IpadHolder.stl
-

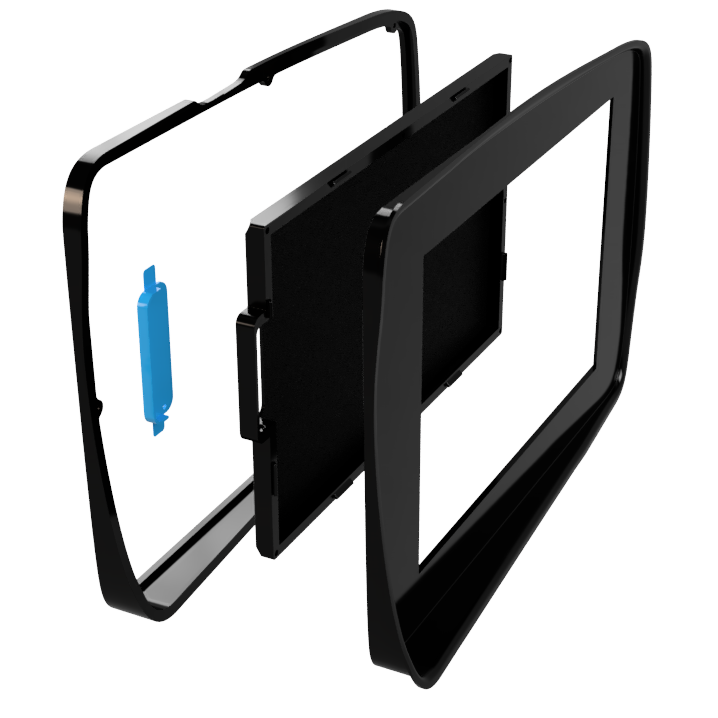

Huawei T5
- HuaweiT5_Faceplate.stl Upper Console Faceplate.
- HuaweiT5_Faceplate_WithSacrificialSupport.stl Same as HuaweiT5_Faceplate.stl except has support to enable bridging that can be easily cut off after printing.
- HuaweiT5_FaceplateClamp.stl Screws into HuaweiT5_Faceplate.stl to clamp the kit to the lip of the center console. Optional if you glue the Faceplate to the Console.
- HuaweiT5_TabletHolder.stl Screws into HuaweiT5_Faceplate.stl and holds iPad
- HuaweiT5_ChargingCableCase.stl Screws into HuaweiT5_TabletHolder.stl, allows access to charging cable port.
- FaceplateSacrificalSupport_IntersectIsolationInCura.stl Tool that you can use to isolate the Faceplate Sacrifical Support in Cura using intersect feature.
- SuedeCuttingJigA_HuaweiT5.stl Tool to assist in cutting the Suede for HuaweiT5_TabletHolder.stl
- SuedeCuttingJigB_HuaweiT5.stl Tool to assist in cutting the Suede for HuaweiT5_TabletHolder.stl
- SuedeCuttingJigC_HuaweiT5.stl Tool to assist in cutting the Suede for HuaweiT5_TabletHolder.stl
-

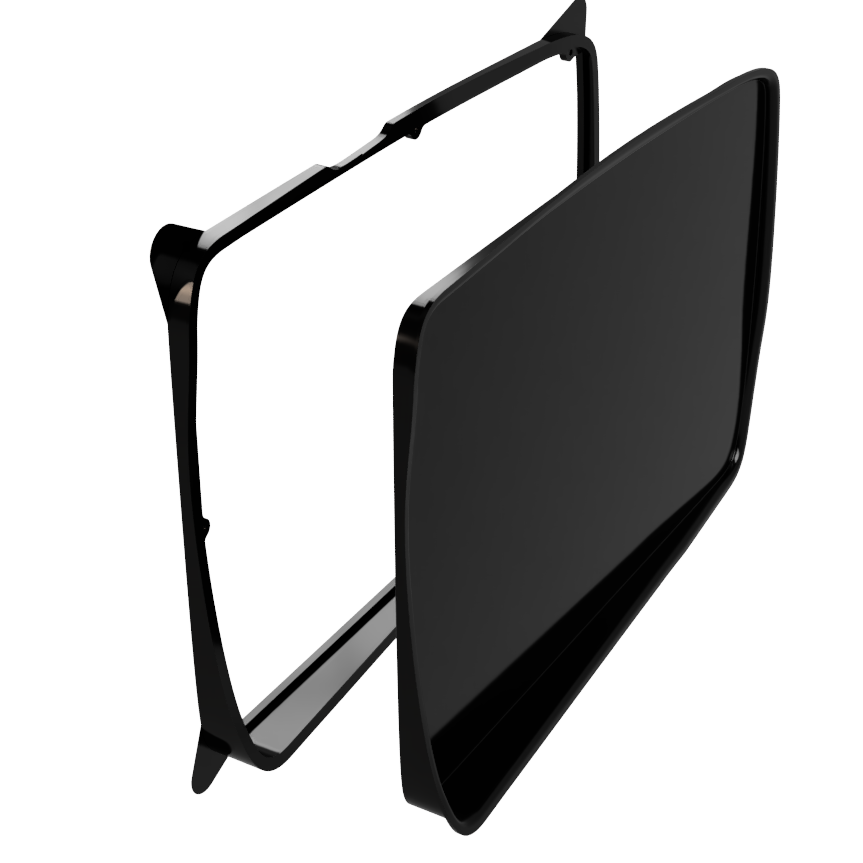

Blank Faceplate
- Blank_Faceplate.stl Upper Console Faceplate without hole for tablet / iPad
- Blank_Faceplate_WithSacrificialSupport.stl Same as Blank_Faceplate.stl except has support to enable bridging that can be easily cut off after printing.
- Blank_FaceplateClamp.stl Screws into Blank_Faceplate.stl to clamp the kit to the lip of the center console. Optional if you glue the Faceplate to the Console.
